Husqvarna 339 XP (20040100001-20051000000) Chain Saw

Model: 339 XP (20040100001-20051000000)

Back To Assemblies

Save Part Not Listed?
product name

CHAIN BRAKE

...
...
503 86 20-01
GUIDE HUS-503862001
...
503 85 46-01
PIN HUS-503854601
...
503 22 00-01
NUT M8 FLANGE HUS-503220001
...
503 90 88-01
DECAL HUS-503908801
...
503 90 83-01
SPRING HUS-503908301
...
501 87 53-01
KNEE-JOINT HUS-501875301
...
503 80 52-01
COVER HUS-503805201
...
735 31 08-20
E-RING 4 HUS-735310820
...
537 09 90-01
HAND GUARD HUS-537099001
...
503 21 28-10
SCREW HUS-503212810
...
503 85 51-01
PROTECTOR HUS-503855101
...
503 79 91-04
CHAIN BRAKE HUS-503799104
...
503 21 28-10
SCREW HUS-503212810
...
503 80 97-02
BRAKE BAND ASSY HUS-503809703
...
503 81 71-01
SHAFT PIVOT HUS-503817101
...
735 31 10-20
C-WASHER HUS-735311020
...
537 09 28-01
SPRING HUS-537092801
...
720 12 33-00
PIN 3X10 HUS-720123300

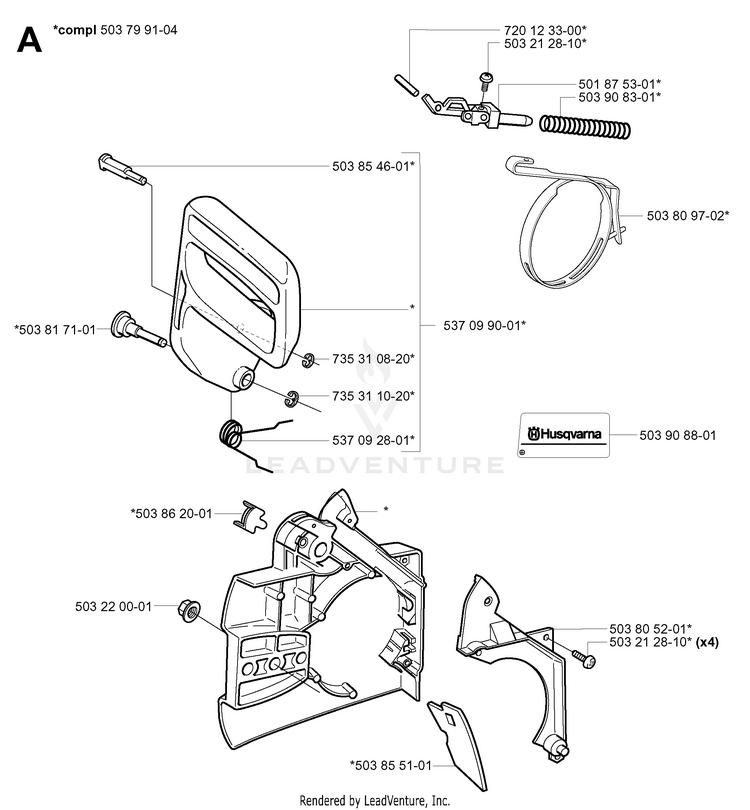

Schematic Image Zoomed
