Husqvarna 339 XP (20040100001-20051000000) Chain Saw

Model: 339 XP (20040100001-20051000000)

Back To Assemblies

Save Part Not Listed?
product name

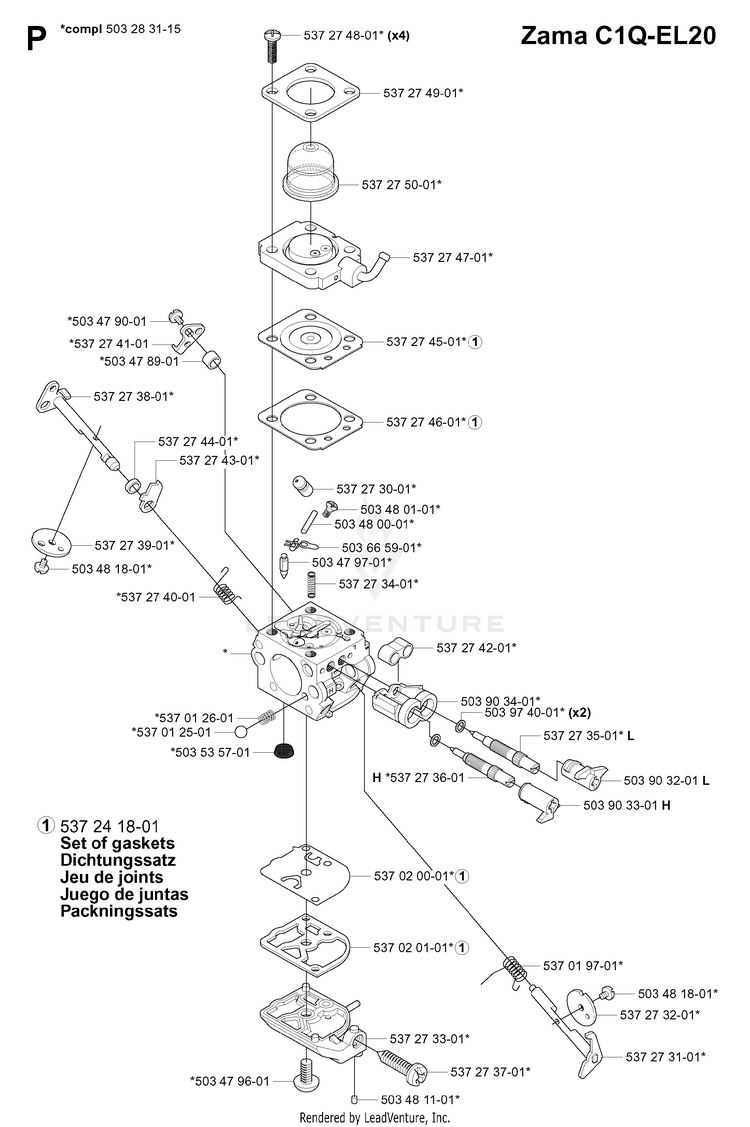

CARBURETOR DETAILS

...
...
537 27 47-01
COVER HUS-537274701
...
537 27 45-01
DIAPHRAGM 537 24 18-01 SET OF GASKETS HUS-537274501
...
537 27 46-01
GASKET 537 24 18-01 SET OF GASKETS HUS-537274601
...
503 48 00-01
PIN HUS-537020801
...
537 27 40-01
SPRING HUS-537274001
...
537 27 50-01
PURGE HUS-537275001
...
537 27 38-01
SHAFT HUS-537273801
...
537 27 31-01
SHAFT HUS-537273101
...
503 47 90-01
SCREW HUS-503479001
...
537 27 39-01
WASHER HUS-537273901
...
537 27 41-01
ARM HUS-537274101
...
537 01 26-01
SPRING HUS-537012601
...
537 02 00-01
PUMP DIAPHRAGM 537 24 18-01 SET OF GASKETS HUS-537020001
...
537 27 42-01
SLEEVE HUS-537274201
...
537 27 30-01
JET HUS-537273001
...
503 90 32-01
LIMITER CAP L HUS-503903201
...
537 27 32-01
WASHER HUS-537273201
...
537 01 25-01
BALL HUS-537012501
...
537 27 34-01
SPRING HUS-537273401
...
537 27 35-01
LOW SPEED NEEDLE L HUS-537273501
...
503 47 89-01
SPACER HUS-503478901
...
503 48 01-01
SCREW HUS-503480101
...
503 66 59-01
LEVER HUS-503665901
...
503 90 34-01
SLEEVE HUS-503903401
...
503 90 33-01
LIMITER CAP H HUS-503903301
...
503 28 31-15
CARBURETOR HUS-544112501
...
503 48 11-01
PLUG HUS-503481101
...
503 47 97-01
INLET NEEDLE HUS-503479701
...
537 01 97-01
SPRING THROTTLE HUS-537019701
...
503 97 40-01
WASHER HUS-503974001
...
537 27 36-01
NEEDLE HIGH SPEED H HUS-537383801
...
503 47 96-01
SCREW HUS-503479601
...
537 27 37-01
SCREW HUS-537273701
...
503 53 57-01
STRAINER HUS-503535701
...
537 27 43-01
ARM HUS-537274301
...
537 02 01-01
GASKET 537 24 18-01 SET OF GASKETS HUS-537020101
...
537 27 48-01
SCREW HUS-537274801
...
503 48 18-01
SCREW HUS-503481801
...
537 27 33-01
COVER HUS-537273301
...
537 27 49-01
WASHER HUS-537274901
...
537 27 44-01
WASHER HUS-537274401
