Husqvarna 3381E94 (1999 & Before) Tractor

Model: 3381E94 (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

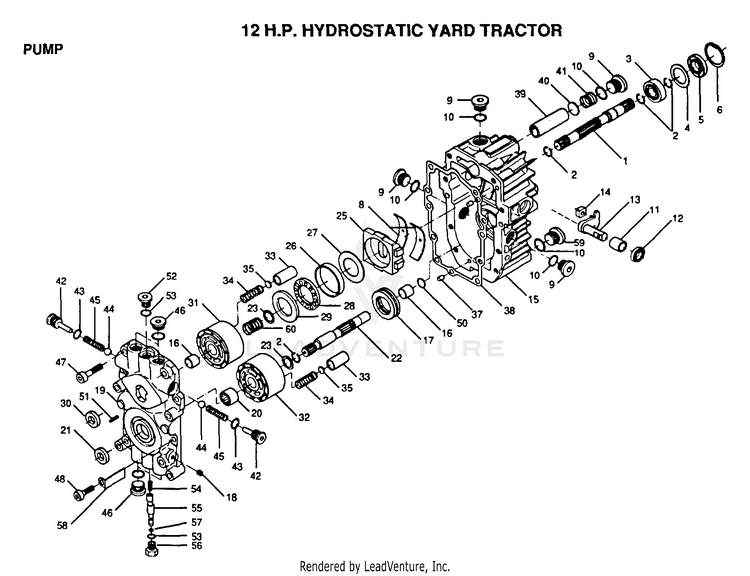

PUMP

...
...
1
SHAFT.PU.2003022 HUS-122756X
...
2
RETAINIANG RING-(2003016) HUS-122716X
...
3
BALL BEARING HUS-122745X
...
4
SPACER HUS-122715X
...
5
SEAL LIP HUS-122700X
...
6
RING.RET.2003052 HUS-122699X
...
8
CRADLE BEARING (2003023) HUS-122767X
...
9
PLUG HUS-122729X
...
10
O RING HUS-122746X
...
11
BEARING HUS-122747X
...
12
SEAL.9008000-0126 HUS-122717X
...
13
TRUNION ARM (2003005) HUS-122748X
...
14
GUIDE.2000015.HYD HUS-122749X
...
15
SUB= 121430X HUS-122768X
...
17
JOURNAL BRG(2003071) HUS-122769X
...
16
SUB= 142936 HUS-122770X
...
18
SUB= 122771X HUS-122771
...
19
CENTER SECTION HUS-122772X
...
20
NEEDLE BEARING HUS-122773X
...
21
LIP SEAL-9008000-0127 HUS-122722X
...
22
SHAFT HUS-122750X
...
23
WASHER HUS-122774X
...
25
SUB= 121430X HUS-122775X
...
26
SUB= 121430X HUS-122776X
...
27
SUB= 121430X HUS-122777X
...
28
SUB= 121430X HUS-122778X
...
29
SUB= 121430X HUS-122779X
...
30
SEAL LIP HUS-122723X
...
31
CYLINDER BLOCK HUS-122780X
...
32
CYLINDER BLOCK(70331) HUS-122781X
...
33
PISTON HUS-122782X
...
34
PISTON SPRING HUS-122784X
...
35
WASHER.TR.2003019 HUS-122785X
...
37
PIN HUS-122786X
...
38
GASKET.20030600 HUS-122718X
...
39
FILTER HUS-122731X
...
40
WASHER (2000011) HUS-122730X
...
41
SPRING HUS-122728X
...
42
PLUG HUS-122706X
...
43
O RING HUS-122705X
...
44
BALL HUS-122702X
...
45
SPRING.2003012.HY HUS-122704X
...
46
PLUG HUS-122787X
...
47
SCREW9007314-0808 HUS-122752X
...
48
SCREW HUS-122753X
...
50
WASHER HUS-122788X
...
51
PIN HUS-122789X
...
52
PLUG HUS-122754X
...
53
O RING HUS-122711X
...
54
SPRING HUS-122708X
...
55
SUB= 122712X HUS-122709X
...
56
BYPAS KT 25130011 HUS-122712X
...
57
O RING (9004175-0027) HUS-122710X
...
58
ADHESIVE LABEL HUS-122727X
...
59
PLUG HUS-122790X
...
60
SPRING HUS-122791X
...
xx
PUMP.BDU-10S-114 HUS-121430X
