Husqvarna 3364-14 (1991) Tractor

Model: 3364-14 (1991)

Back To Assemblies

Save Part Not Listed?
product name

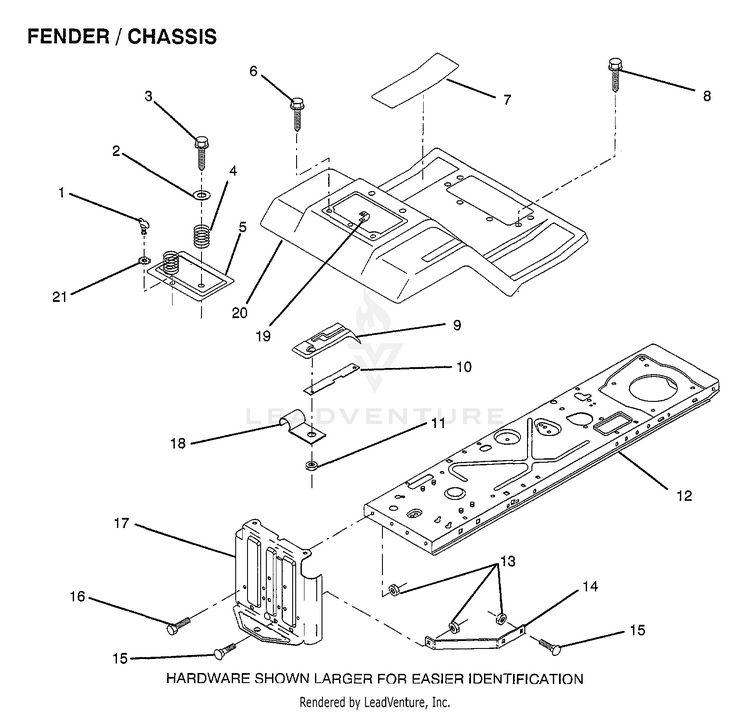

FENDER/CHASSIS

...
...
1
STUD.1/4.TURN HUS-123650X
...
2
WASHER HUS-19132012
...
3
SCREW HUS-17490612
...
4
SPRING COMPRESSIO HUS-124181X
...
5
"DOOR,FENDER" HUS-122008X424
...
6
SCREW LT HUS-17490508
...
7
PAD FOOTREST HUS-124144X
...
8
SCREW HUS-17490512
...
9
SUB= 126995X428 HUS-126995X
...
10
"SHIFT LOCK, BAR" HUS-124307X
...
11
NUT HUS-124346X
...
12
FRAME ASS'Y HUS-123645X
...
13
SUB= 73690500 HUS-73680500
...
14
"BRACE,DRAWBAR " HUS-123379X
...
15
BOLT HUS-72140506
...
16
BOLT HUS-74760512
...
17
DRAWBAR HUS-127880
...
18
"CLIP,INSULATOR" HUS-126470X
...
19
RECEPTACLE LT HUS-105839X
...
20
FENDER/FOOTREST HUS-124332X424
...
21
RETAINER LT HUS-105838X
...
xx
DECAL HUS-120822X
...
xx
SUB= 138269 HUS-123637X
...
xx
DECAL DRIVE HUS-123408X
...
xx
DECAL HUS-121549X
