Husqvarna 3364-14 (1991) Tractor

Model: 3364-14 (1991)

Back To Assemblies

Save Part Not Listed?
product name

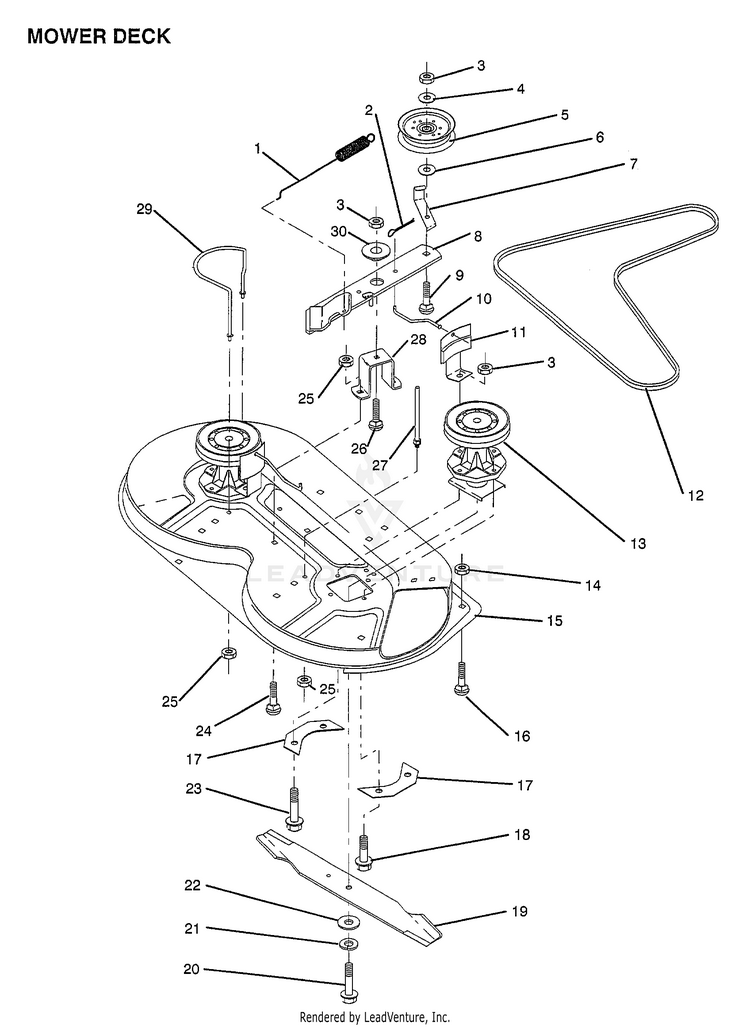

MOWER DECK PART 2

...
...
1
SUB= 140064 HUS-122028X
...
2
SUB= 3145 HUS-76020312
...
3
SUB= 73690600 HUS-73680600
...
4
WASHER HUS-19131412
...
5
PULLEY IDLER HUS-121316X
...
6
WASHER GT HUS-19132203
...
7
GUIDE.BELT HUS-126756X
...
8
IDLER ARM ASS'Y HUS-123702X
...
9
BOLT CARRIAGE HUS-72110618
...
10
ROD BRAKE HUS-122049X
...
11
BRAKE LT HUS-106578X
...
12
BELT.MOWER.79.75 HUS-124293X
...
13
MANDREL ASS'Y HUS-124208X
...
14
SUB= 73690400 HUS-73680400
...
15
SUB= 144727 HUS-121787X
...
16
BOLT HUS-72140404
...
17
SUPPORT PLATE LT HUS-100668L
...
18
SCREW HUS-17490614
...
19
"BLADE.36""HIGH LIF" HUS-126338X
...
20
BOLT.3/8-24X1-1/2 HUS-74610624
...
21
SUB= 10040600 HUS-10030600
...
22
WASHER HUS-19132012
...
23
SCREW HUS-17490620
...
24
BOLT HUS-72140505
...
25
SUB= 73690500 HUS-73680500
...
26
BOLT D HUS-72110608
...
27
"GUIDE,REAR BEL RH" HUS-123439X
...
28
"SUPT,IDLER ARM" HUS-122051X
...
29
GUIDE BELT LH HUS-123673X
...
30
SPACER RETAINER HUS-122052X
