Husqvarna 3363 (1999 & Before) Tractor

Model: 3363 (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

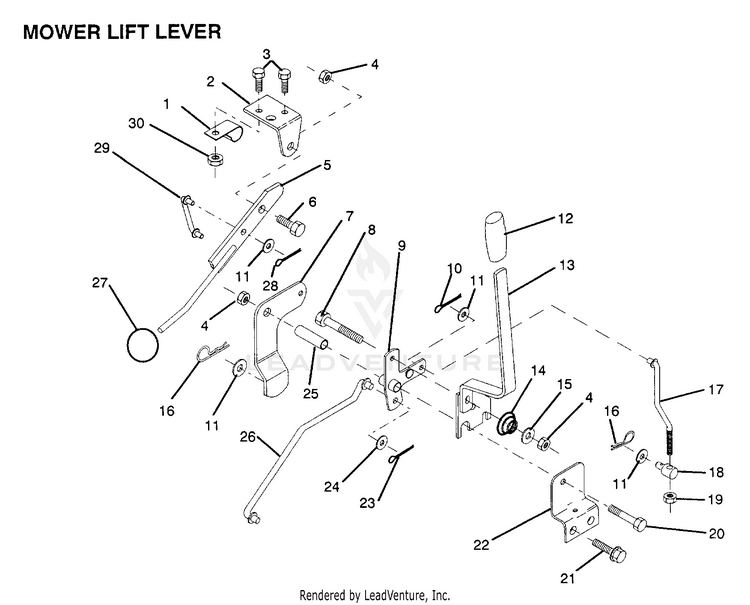

MOWER LIFT LEVER

...
...
1
"CLIP,INSULATOR" HUS-126470X
...
2
BRKT CLUTCH HUS-122018X
...
3
BOLT HUS-74780408
...
4
SUB= 73690600 HUS-73680600
...
5
CLUTCH LEVER AS HUS-123417X
...
6
"BOLT, SHOULDER LT" HUS-106451X
...
7
CLUTCH ARM ASS'Y HUS-123491X
...
8
BOLT HUS-74760636
...
9
"BELLCRANK,LIFT" HUS-121930X
...
10
COTTER PIN HUS-76020412
...
11
WASHER HUS-19131316
...
12
GRIP HANDLE HUS-122027X
...
13
"HDLE,LIFT T" HUS-127028
...
14
SPRING COMPRESSIO HUS-123496X
...
15
WASHER T HUS-19131212
...
16
SPRING.RETAINER HUS-4921H
...
17
LINK FRT LIFT HUS-123654X
...
18
SUB= 142028 HUS-7078J
...
19
NUT HUS-73350600
...
20
BOLT HUS-74760644
...
21
SCREW LT HUS-17490508
...
22
"BRKT,MOWER HGT" HUS-121929X
...
23
PIN COTTER 1/8 HUS-76020416
...
24
WASHER HUS-19171616
...
25
TUBE SPACER HUS-121933X
...
26
"ROD,MOWER LIFT " HUS-121934X
...
27
KNOB T(3/8 HOLE) HUS-106932X
...
28
SUB= 3145 HUS-76020312
...
29
"LINK,MOWER LIFT" HUS-123671X
...
30
SUB= 73690400 HUS-73680400
