Husqvarna 3363 (1999 & Before) Tractor

Model: 3363 (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

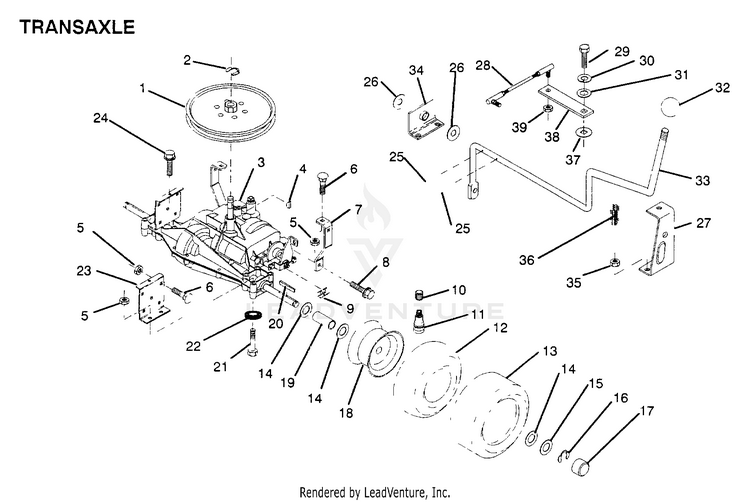

TRANSAXLE

...
...
1
PULLEY HUS-123385X
...
2
SUB= 2267J HUS-12000028
...
3
TRANSAXLE PEERLESS 5 SPEED HUS-127053
...
4
SUB= 2228M1 HUS-2228M
...
5
SUB= 73690500 HUS-73680500
...
6
BOLT HUS-72140506
...
7
"STRAP,TORQUE" HUS-123378X
...
8
SCREW LT HUS-17490508
...
9
SUB= 146682 HUS-110422X
...
10
VALVE CAP HUS-59192
...
11
VALVE STEM LT HUS-65139
...
12
TUBE.16X6.5/7.5-8 HUS-8134H
...
13
SUB= 122075X HUS-106230X
...
14
WASHER HUS-121749X
...
15
WASHER HUS-121748X
...
16
E-RING LT HUS-12000001
...
17
HUB CAP HUS-104757X
...
18
RIM HUS-123412X361
...
19
SPACER HUS-123409X
...
20
SQUARE KEY HUS-123583X
...
21
BOLT HUS-74760540
...
22
SUB= 73690600 HUS-73680600
...
23
"BRKT,TRANSAXLE" HUS-123377X
...
24
SCREW HUS-17490512
...
25
PIN COTTER 1/8 HUS-76020416
...
26
WASHER HUS-19171616
...
27
SUB= 128084 HUS-124601X
...
28
LINK SHIFT HUS-126293X
...
29
SUB= 74550412 HUS-71040412
...
30
LOCKWASHER HUS-10040400
...
31
WASHER LT HUS-19091210
...
32
KNOB T (1/2-HOLE) HUS-106933X
...
33
SUB= 128215 HUS-124599X
...
34
"SUPT,HDLE SHT LH" HUS-124600X
...
35
NUT HUS-73510500
...
36
EXT SPRING HUS-123393X
...
37
WASH-SHFT PLT LT HUS-105701X
...
38
ARM SHIFT HUS-126292X
...
39
NUT.LOCK.5/16-24 HUS-73810500
