Husqvarna 3363 (1999 & Before) Tractor

Model: 3363 (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

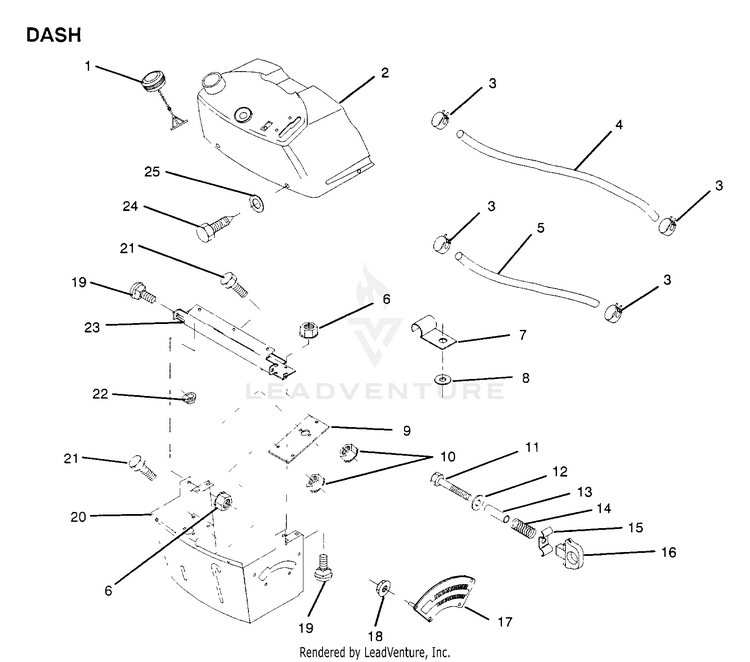

DASH

...
...
1
SUB= 141523 HUS-122015X
...
2
SUB= 138393 HUS-123986X
...
3
HOSE CLAMP HUS-123487X
...
4
SUB= 295J HUS-8544R
...
5
FUEL LINE T HUS-8548R
...
6
NUT HUS-73510400
...
7
CLIP T HUS-2751R
...
8
WASHER PM HUS-19091216
...
9
"PLATE,SUPT " HUS-130051
...
10
LOCKNUT HUS-73690400
...
11
BOLT HUS-74760432
...
12
WASHER HUS-19111116
...
13
SPACER SPLIT HUS-123494X
...
14
SPRING T HUS-2876H
...
15
HEIGHT ADJ HUS-123493X
...
16
KNOB HUS-126115X
...
17
ADJUSTER QUAD HUS-122023X
...
18
NUT HUS-124346X
...
19
BOLT HUS-72110404
...
20
SUPPORT DASH HUS-121789X
...
21
SUB= 74780414 HUS-74780412
...
22
SUB= 9151R HUS-110436X
...
23
"BRAKE,CROSS" HUS-122016X
...
24
SUB= 818000408 HUS-130052
...
25
WASHER HUS-19090816
