Husqvarna 336 (2006-09) Chain Saw

Model: 336 (2006-09)

Back To Assemblies

Save Part Not Listed?
product name

Carburetor Parts

...
...
503478901
SPACER HUS-503478901
...
503479001
SCREW HUS-503479001
...
503479601
SCREW HUS-503479601
...
503479701
INLET NEEDLE HUS-503479701
...
503480001
PIN HUS-537020801
...
503480101
SCREW HUS-503480101
...
503481101
PLUG HUS-503481101
...
503481801
SCREW HUS-503481801
...
503535601
PLUG HUS-503535601
...
503535701
STRAINER HUS-503535701
...
503665901
LEVER HUS-503665901
...
537012501
BALL HUS-537012501
...
537012601
SPRING HUS-537012601
...
537019701
SPRING THROTTLE HUS-537019701
...
537020001
PUMP DIAPHRAGM HUS-537020001
...
537020101
GASKET HUS-537020101
...
537241801
GASKET SET HUS-537241801
...
537273101
SHAFT HUS-537273101
...
537273301
COVER HUS-537273301
...
537273401
SPRING HUS-537273401
...
537273701
SCREW HUS-537273701
...
537273801
SHAFT HUS-537273801
...
537273901
WASHER HUS-537273901
...
537274001
SPRING HUS-537274001
...
537274101
ARM HUS-537274101
...
537274301
ARM HUS-537274301
...
537274401
WASHER HUS-537274401
...
537274501
DIAPHRAGM HUS-537274501
...
537274601
GASKET HUS-537274601
...
537274701
COVER HUS-537274701
...
537274801
SCREW HUS-537274801
...
537274901
WASHER HUS-537274901
...
537275001
PURGE HUS-537275001
...
537387501
SCREW HUS-537387501
...
537388301
THROTTLE FLAP HUS-537388301
...
537413501
NOZZLE HUS-537413501
...
537416901
IDLE SCREW HUS-537416901
...
537417001
LIMITER CAP KIT HUS-537417001
...
544112501
CARBURETOR HUS-544112501

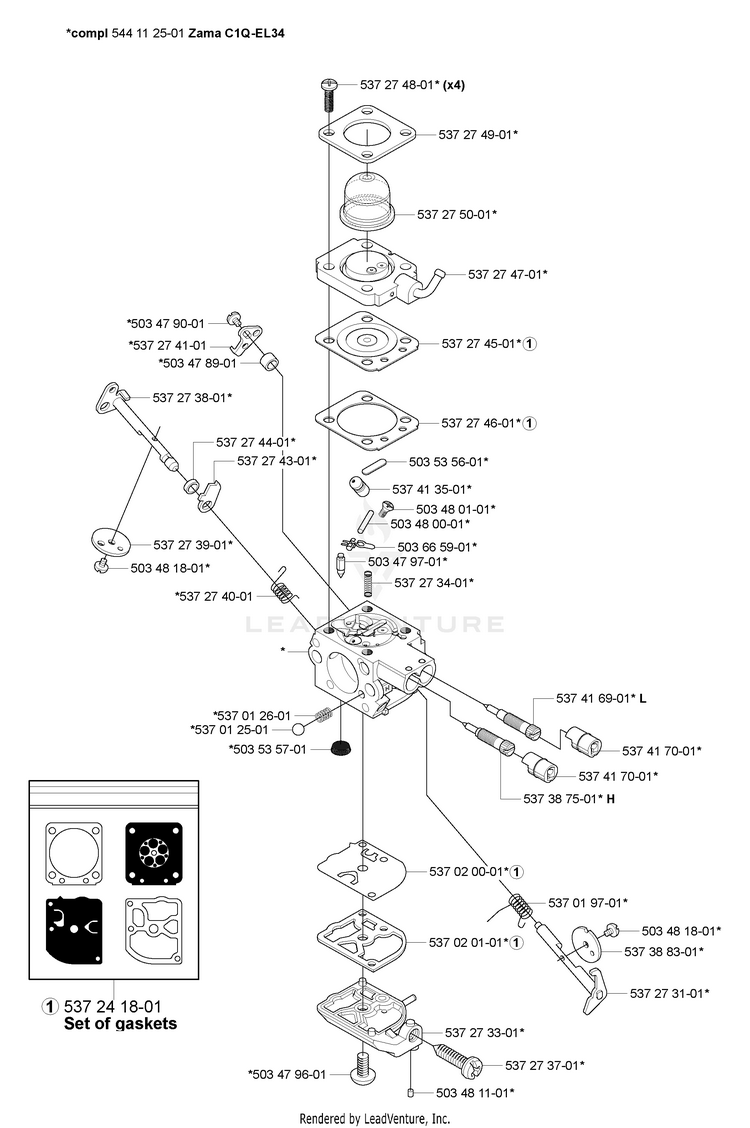

Schematic Image Zoomed
