Husqvarna 336 (2006-09) Chain Saw

Model: 336 (2006-09)

Back To Assemblies

Save Part Not Listed?
product name

Tank / Rear Handle

...
...
501822501
FUEL INLET-FITTING HUS-501822501
...
503200216
SCREW HUS-503200216
...
503226504
NUT HUS-503226504
...
503443201
KIT FUEL FILTER HUS-591375401
...
503556601
THROTTLE CATCH HUS-503556601
...
503577602
KIT HOSE SPIRAL 300 HUS-591375201
...
503578901
TANK LOCK HUS-503578901
...
503718201
START/STOP SWITCH HUS-503718201
...
503735801
FUEL TANK BUSHING HUS-503735801
...
503736401
SPRING HUS-503736401
...
503823302
VIBRATION ABSORBER HUS-503823302
...
503829801
THROTTLE TRIGGER HUS-503829801
...
503842601
HOSE HUS-503842601
...
503853804
ANTI-VIBE ELEMENT HUS-503853804
...
503967501
OIL PLUMMET HUS-503967501
...
503981301
PLUG HUS-503981301
...
503987401
DECAL HUS-503987401
...
530026119
VALVE-CHECK (DUCKBILL) HUS-530026119
...
537042407
HOSE HUS-537042407
...
537051101
O-RING HUS-537184901
...
537052801
SLEEVE HUS-537052801
...
537059301
INSERT HUS-537059301
...
537063502
SPARK PLUG COVER HUS-537063502
...
537070401
CHOKE CONTROL HUS-537070401
...
537074001
CABLE ASSY HUS-537074001
...
537075801
THROTTLE WIRE HUS-537075802
...
537086401
GROMMET HUS-537086401
...
537088905
TANK UNIT ASSY HUS-537088907
...
537098001
DECAL HUS-537378101
...
537127601
DECAL HUS-537127601
...
537139701
CAP HUS-537139701
...
537215001
SEALING HUS-589241101
...
537215102
TANK CAP HUS-537215207
...
537215104
TANK CAP LIGHT GRAY HUS-537215204
...
537215202
TANK CAP HUS-537215207
...
537215204
TANK CAP LIGHT GRAY HUS-537215204
...
537359501
FUEL TANK VENT HUS-501152901
...
720124020
PIN HUS-720182520
...
720127520
PIN HUS-720127520

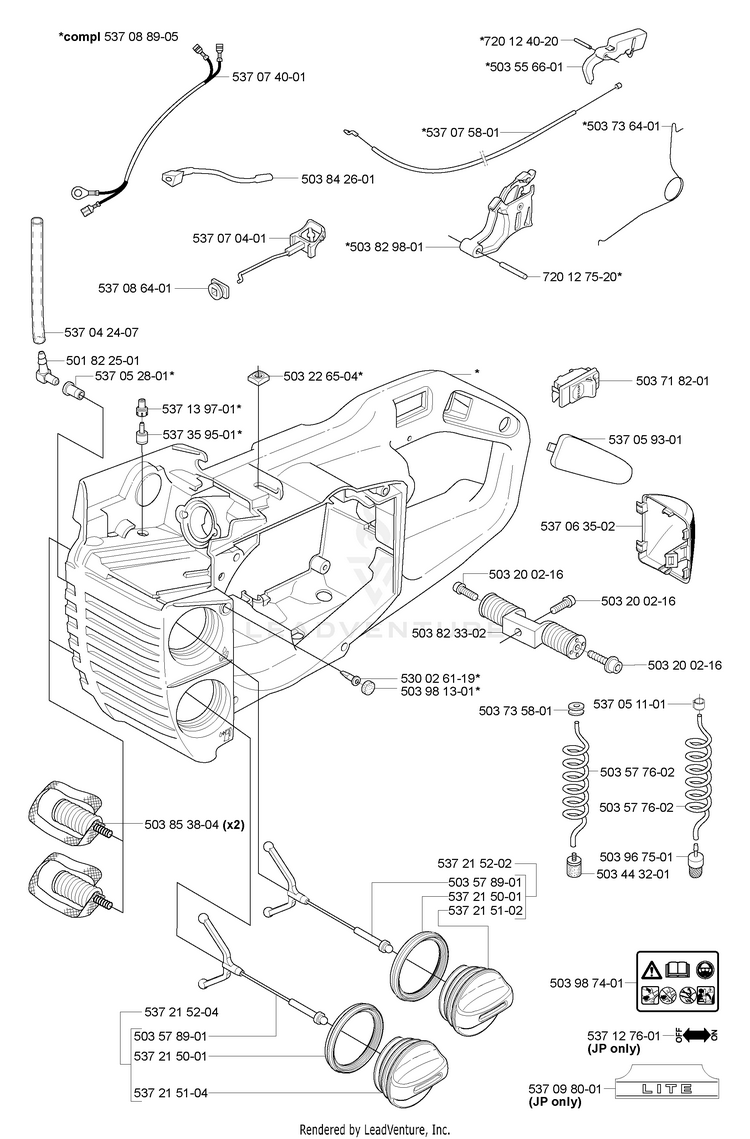

Schematic Image Zoomed
