Husqvarna 336 (2003-10) Chain Saw

Model: 336 (2003-10)

Back To Assemblies

Save Part Not Listed?
product name

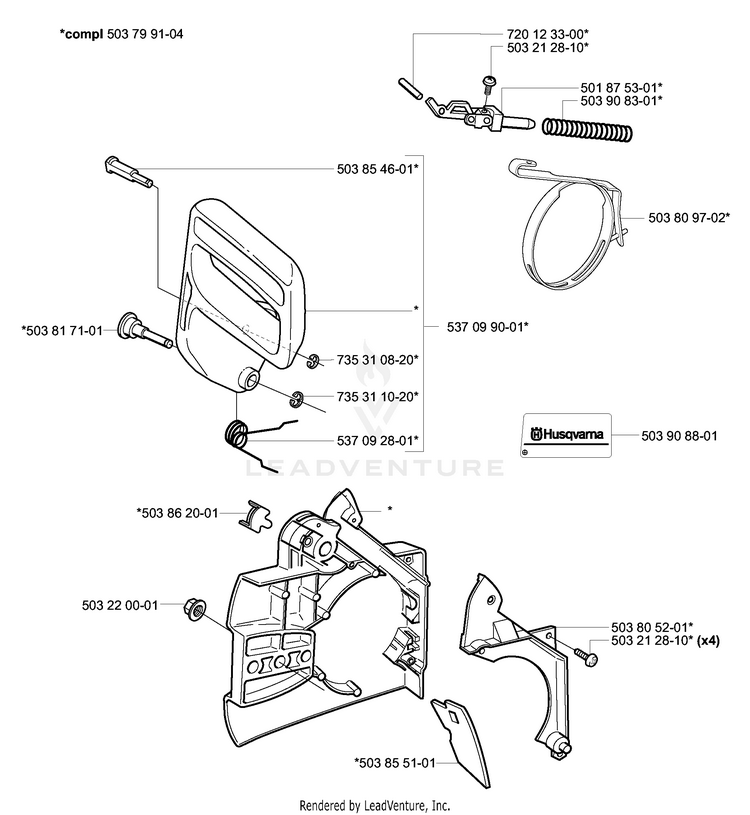

Chain Brake

...
...
501875301
KNEE-JOINT HUS-501875301
...
503212810
SCREW HUS-503212810
...
503212810
SCREW HUS-503212810
...
503220001
NUT M8 FLANGE HUS-503220001
...
503799104
CHAIN BRAKE HUS-503799104
...
503805201
COVER HUS-503805201
...
503809702
BRAKE BAND ASSY HUS-503809703
...
503817101
SHAFT PIVOT HUS-503817101
...
503854601
PIN HUS-503854601
...
503855101
PROTECTOR HUS-503855101
...
503862001
GUIDE HUS-503862001
...
503908301
SPRING HUS-503908301
...
503908801
DECAL HUS-503908801
...
537092801
SPRING HUS-537092801
...
537099001
HAND GUARD HUS-537099001
...
720123300
PIN 3X10 HUS-720123300
...
735310820
E-RING 4 HUS-735310820
...
735311020
C-WASHER HUS-735311020
