Husqvarna 3352B99 (1999) Tiller

Model: 3352B99 (1999)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

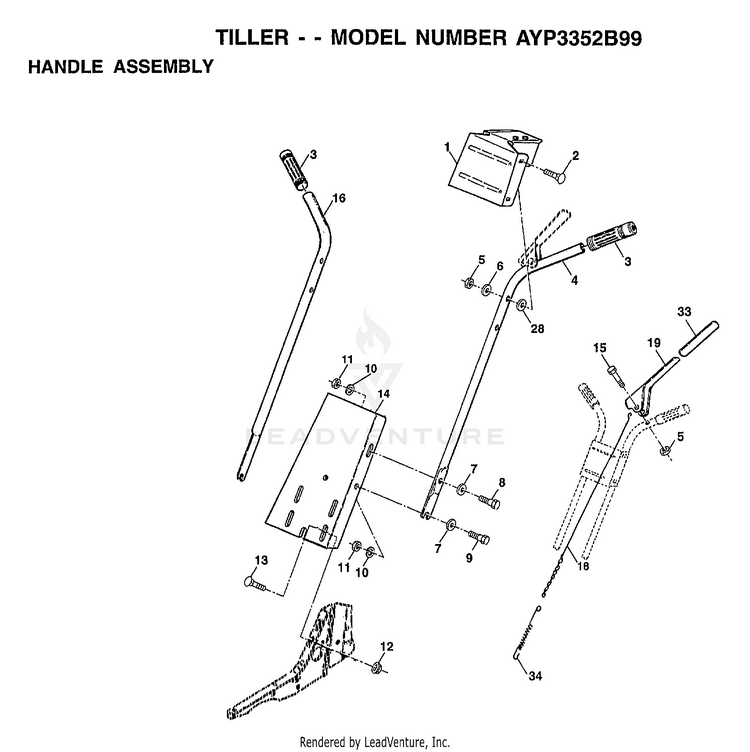

HANDLE ASSEMBLY

...
...
1
HANDLE BRKT PLN-137176X505
...
2
BOLT PLN-72140512
...
3
SUB= 624A78 PLN-9266R
...
4
HANDLE LH PLN-151473
...
5
SUB= 73690500 PLN-73680500
...
6
WASHER PLN-19111116
...
7
WASHER PLN-19121414
...
8
SUB= 77394 PLN-74760516
...
9
BOLT PLN-74760512
...
10
LOCKWASHER PLN-10040500
...
11
NUT.HEX.5/16-18 PLN-73220500
...
12
NUT PLN-98000129
...
13
BOLT PLN-72140506
...
14
PANEL. HANDLE PLN-9209R505
...
15
BOLT.HEX.5/16-1.5 PLN-74760524
...
16
HANDLE RH PLN-151474
...
18
SUB= 100382K PLN-3067J
...
19
LEVER.CONTROL.TINE PLN-164937
...
28
WASHER PLN-19131312
...
33
GRIP T PLN-8206H
...
34
SPRING EXT TI PLN-3070J
...
...
...
...
...
