Husqvarna 335 LX Trimmer/Edger

Model: 335 LX

Back To Assemblies

Save Part Not Listed?
product name

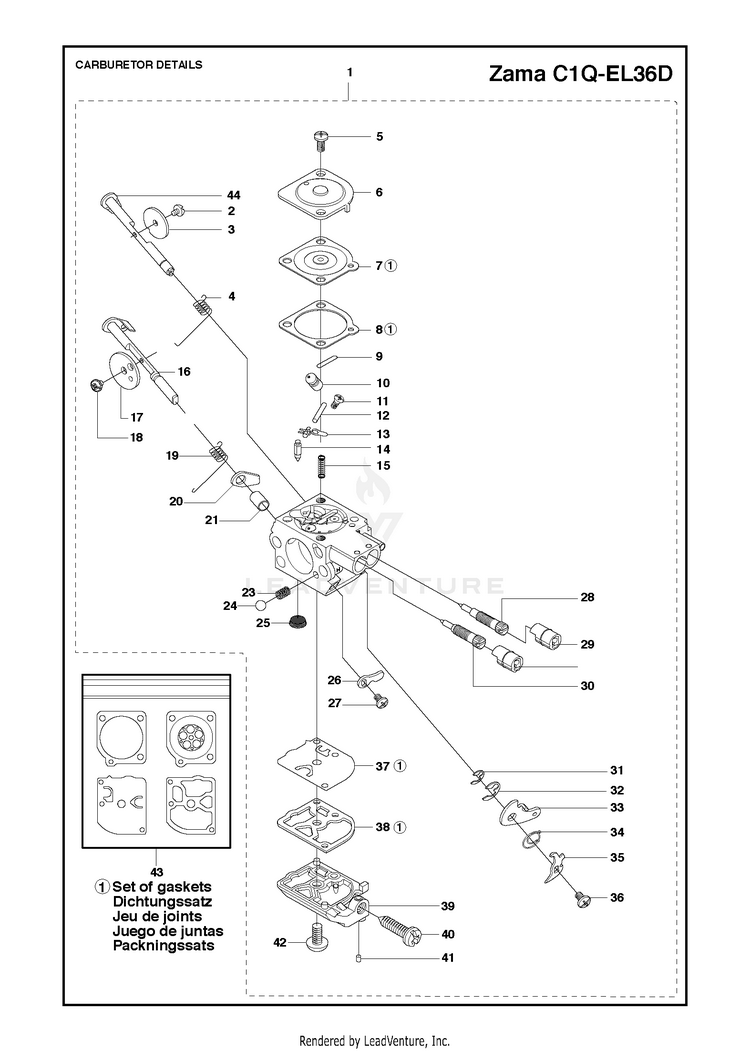

CARBURETOR 2

...
...
21
SLEEVE HUS-544427001
...
44
SHAFT ASSY THROTTLE HUS-544372101
...
11
SCREW HUS-503480101
...
17
CHOKE CAP HUS-537370301
...
5
SCREW HUS-503480501
...
10
MAIN NOZZLE HUS-581899501
...
40
SCREW HUS-537020701
...
9
PLUG HUS-503535601
...
23
SPRING HUS-537012601
...
6
COVER HUS-503974301
...
38
GASKET HUS-537020101
...
37
PUMP DIAPHRAGM HUS-537020001
...
36
SCREW HUS-502078401
...
1
CARBURETTOR HUS-581167501
...
8
GASKET HUS-537020401
...
39
COVER HUS-537416801
...
19
SPRING HUS-544372601
...
29
LIMITER CAP KIT HUS-537417001
...
24
BALL HUS-537012501
...
13
LEVER HUS-503665901
...
34
SPRING SPRING THROTTLE RETURN HUS-576746601
...
25
FUEL INLET SCREEN HUS-503481301
...
14
INLET NEEDLE HUS-503479701
...
30
SCREW MAIN MIXTURE HUS-581899301
...
2
SCREW HUS-503479201
...
12
PIN HUS-537020801
...
15
SPRING HUS-503478101
...
3
THROTTLE HUS-537417201
...
7
DIAPHRAGM HUS-537048901
...
32
CLIP HUS-537385001
...
33
LEVER HUS-537417301
...
35
LEVER HUS-537417401
...
41
PLUG HUS-503481101
...
28
IDLE SCREW HUS-537416901
...
42
SCREW HUS-503479601
...
27
SCREW HUS-503479001
...
4
RETURN SPRING HUS-544372401
...
26
LEVER HUS-544372301
...
31
CLIP HUS-537385201
...
18
SCREW HUS-503481801
...
43
GASKET KIT (ZAMA GND39) HUS-531004552
...
16
CHOKE SHAFT HUS-544372201
...
20
LEVER HUS-544372501
