Husqvarna 335 LX Trimmer/Edger

Model: 335 LX

Back To Assemblies

Save Part Not Listed?

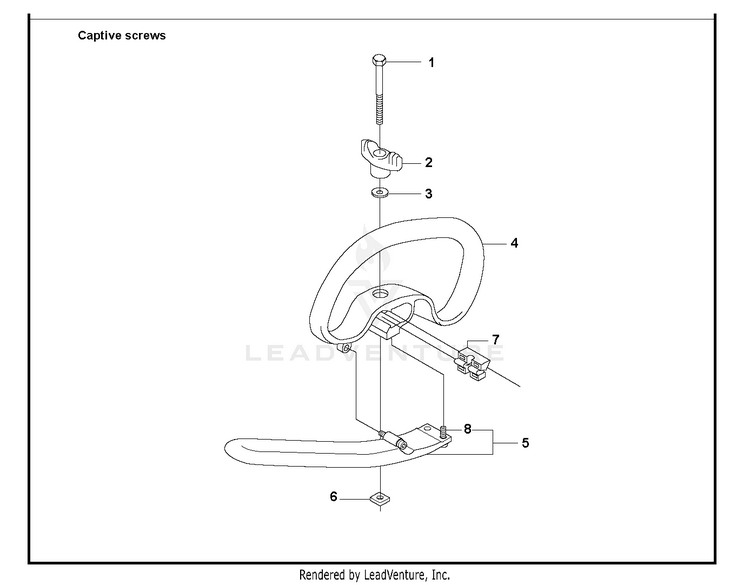

product name

HANDLE

...
...
2
KNOB 335Lx, 335RJx HUS-503879001
...
7
SPACER HUS-544101101
...
1
SCREW M6X50 335Lx, 335RJx HUS-725238051
...
6
NUT HUS-502197101
...
1
SCREW 33RJ, 335LS HUS-725237851
...
4
HANDLE.LOOP Captive screws HUS-544101004
...
5
HANDLE Captive screws HUS-503997804
...
3
WASHER 33RJ, 335LS HUS-503230061
...
8
SCREW IHSCFTO Captive screws HUS-574181501
