product name

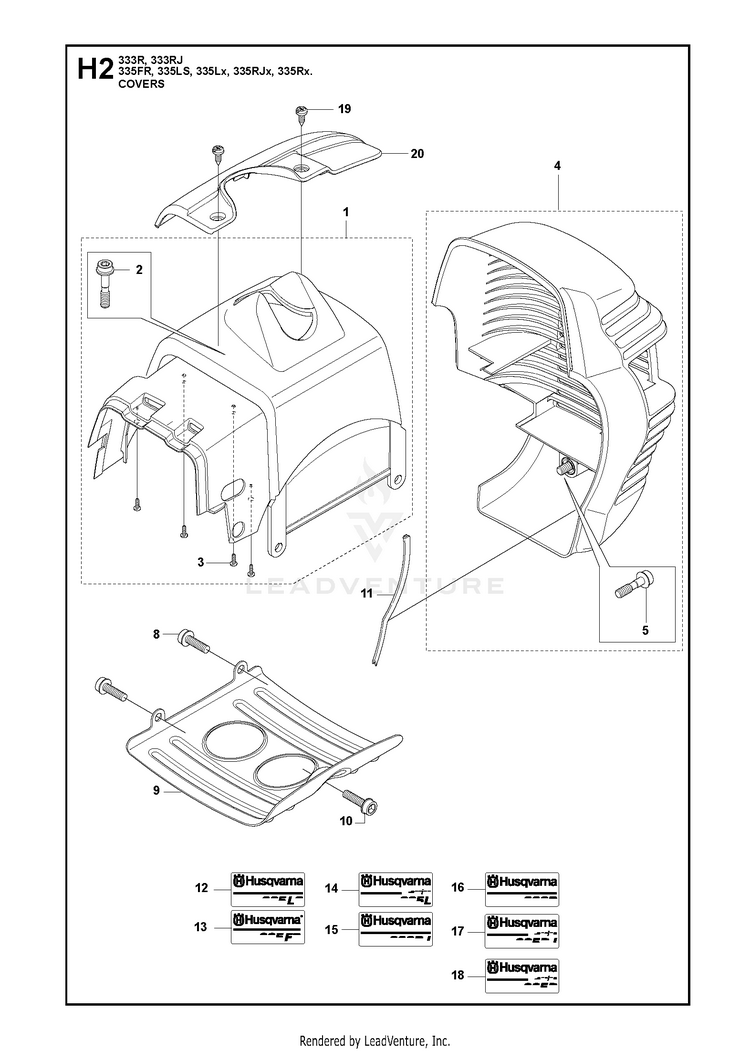

Husqvarna 335 LX Trimmer/Edger

Model: 335 LX

Back To Assemblies

Save Part Not Listed?
product name

COVER 2

...
...
12
DECAL 335LS HUS-537395208
...
17
DECAL CYLINDER COVER 335RJx HUS-537395205
...
15
DECAL CYLINDER COVER 333RJ HUS-537395203
...
5
SCREW IHSCFMO Captive screws HUS-574477003
...
2
SCREW IHSCFMO Captive screws HUS-573994304
...
13
LABEL 335FR HUS-537395209
...
19
SCREW CCRPANT ST4.2X9.5 DS 335Rx HUS-503213502
...
10
SCREW HUS-503217516
...
9
PLATE HUS-537357201
...
3
SCREW HUS-503212910
...
4
HEAT PROTECTOR Captive screws HUS-537425102
...
20
ARM PROTECTION 335Rx HUS-502433901
...
18
DECAL CYLINDER COVER 335Rx HUS-537395206
...
8
SCREW HUS-503217516
...
16
DECAL 333R HUS-537395204
...
1
CYLINDER COVER Captive screws HUS-544160103
...
14
DECAL CYLINDER COVER 335Lx HUS-537395202
...
11
BAR HUS-544029801
