product name

Husqvarna 335 LX Trimmer/Edger

Model: 335 LX

Back To Assemblies

Save Part Not Listed?

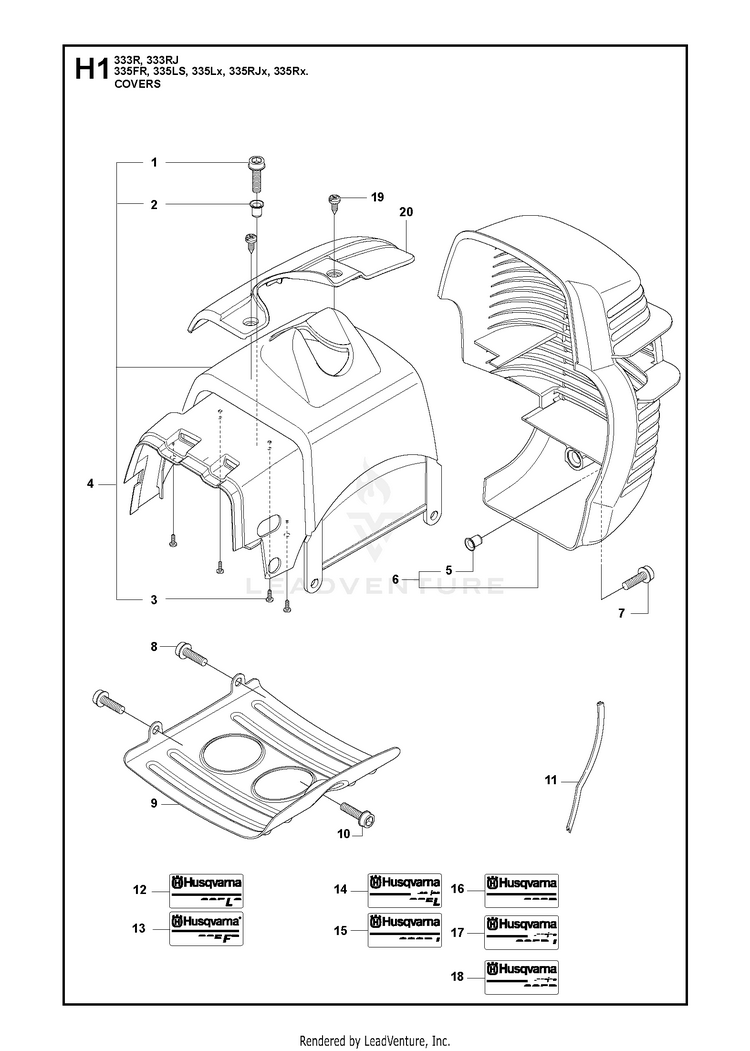

product name

COVER

...
...
15
DECAL CYLINDER COVER 333RJ HUS-537395203
...
17
DECAL CYLINDER COVER 335RJx HUS-537395205
...
16
DECAL 333R HUS-537395204
...
19
SCREW CCRPANT ST4.2X9.5 DS 335LS, 335RJX HUS-503213502
...
13
LABEL 335FR HUS-537395209
...
6
HEAT PROTECTOR HUS-537425102
...
4
CYLINDER COVER HUS-544160103
...
11
BAR HUS-544029801
...
20
ARM PROTECTION HUS-502433901
...
2
SLEEVE HUS-537373802
...
3
SCREW HUS-503212910
...
14
DECAL CYLINDER COVER 335Lx HUS-537395202
...
18
DECAL CYLINDER COVER 335Rx HUS-537395206
...
1
SCREW HUS-503200320
...
8
SCREW HUS-503217516
...
10
SCREW HUS-503217516
...
12
DECAL 335LS HUS-537395208
...
7
SCREW HUS-503200320
...
5
SLEEVE HUS-537373803
...
9
PLATE HUS-537357201
