Husqvarna 335 LS (2008-09) Brush Cutter

Model: 335 LS (2008-09)

Back To Assemblies

Save Part Not Listed?
product name

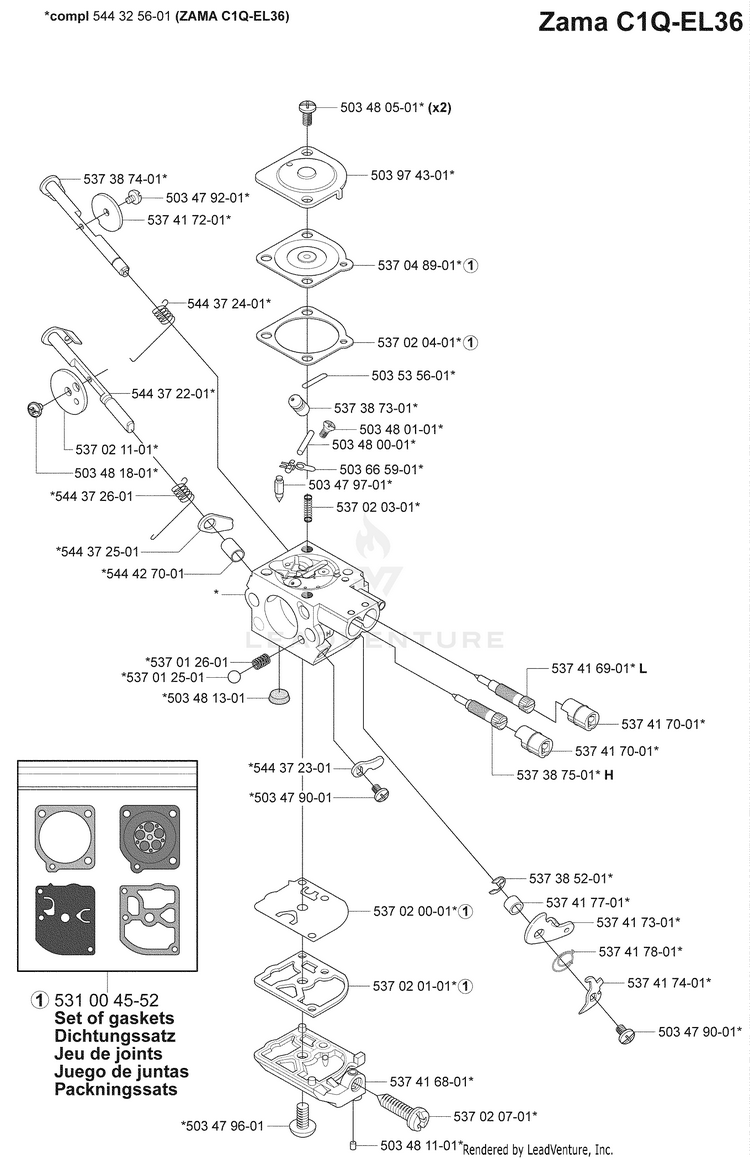

Carb Parts

...
...
503480501
SCREW HUS-503480501
...
503974301
COVER HUS-503974301
...
537048901
DIAPHRAGM HUS-537048901
...
537020401
GASKET HUS-537020401
...
503535601
PLUG HUS-503535601
...
503480101
SCREW HUS-503480101
...
503480001
PIN HUS-537020801
...
537387301
JET HUS-537387301
...
503665901
LEVER HUS-503665901
...
537020301
SPRING HUS-537273401
...
503479701
INLET NEEDLE HUS-503479701
...
537416901
IDLE SCREW HUS-537416901
...
537417001
LIMITER CAP KIT HUS-537417001
...
537417001
LIMITER CAP KIT HUS-537417001
...
537387501
SCREW HUS-537387501
...
537417801
SPRING HUS-537417801
...
537385201
CLIP HUS-537385201
...
537417701
SLEEVE HUS-537417701
...
537417401
LEVER HUS-537417401
...
537417301
LEVER HUS-537417301
...
503479001
SCREW HUS-503479001
...
537020001
PUMP DIAPHRAGM HUS-537020001
...
537020101
GASKET HUS-537020101
...
537416801
COVER HUS-537416801
...
537020701
SCREW HUS-537020701
...
503481101
PLUG HUS-503481101
...
503479601
SCREW HUS-503479601
...
544372301
LEVER HUS-544372301
...
503479001
SCREW HUS-503479001
...
537012501
BALL HUS-537012501
...
537012601
SPRING HUS-537012601
...
503481301
FUEL INLET SCREEN HUS-503481301
...
544372501
LEVER HUS-544372501
...
544427001
SLEEVE HUS-544427001
...
544372601
SPRING HUS-544372601
...
503481801
SCREW HUS-503481801
...
537021101
CHOKE CAP HUS-537370301
...
544372201
CHOKE SHAFT HUS-544372201
...
544372401
RETURN SPRING HUS-544372401
...
503479201
SCREW HUS-503479201
...
537417201
THROTTLE HUS-537417201
...
537387401
THROTTLE SHAFT HUS-537387401
...
544325601
CARBURETTOR HUS-581167501
