Husqvarna 335 LS (2007-01) Trimmer

Model: 335 LS (2007-01)

Back To Assemblies

Save Part Not Listed?
product name

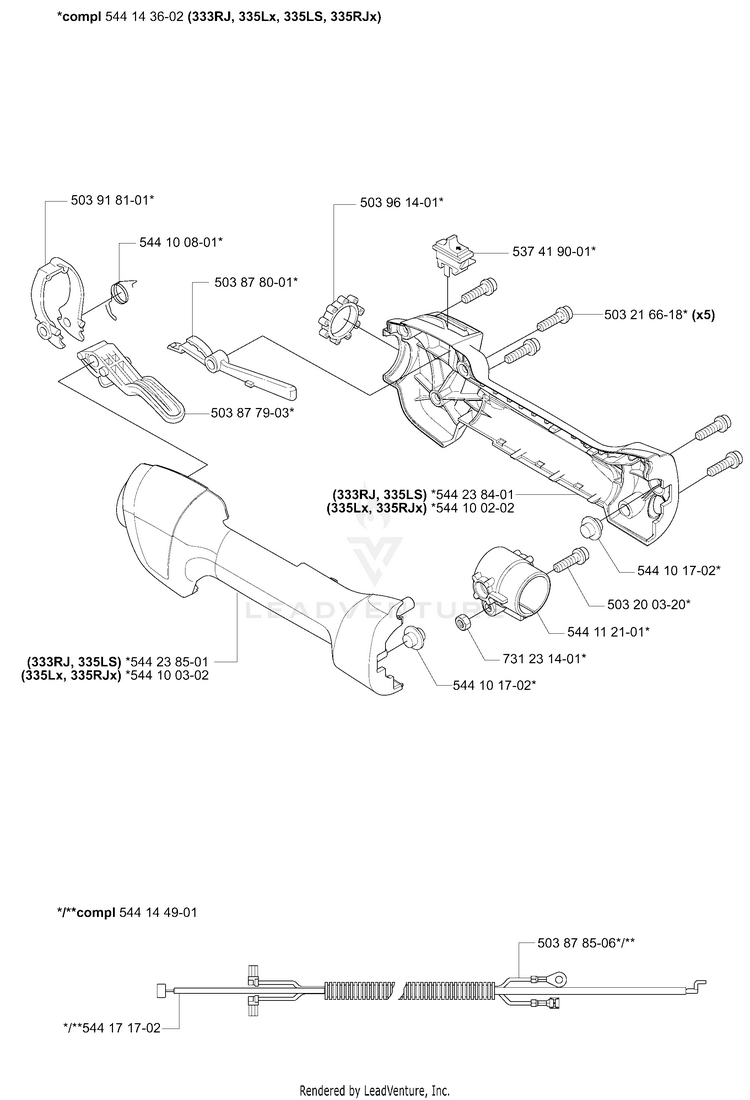

Throttle 333RJ, 335Lx/LS/RJx

...
...
503200320
SCREW HUS-503200320
...
503216618
SCREW HUS-503216618
...
503877903
THROTTLE TRIGGER HUS-503877903
...
503878001
THROTTLE LOCK HUS-503878001
...
503878506
SHORT CIRCUIT CABLE HUS-503878506
...
503918101
LEVER HUS-503918101
...
503961401
VIBRATION DAMPER HUS-503961401
...
537419001
STOP BUTTON HUS-537419001
...
544100202
HANDLE HUS-544100202
...
544100302
HANDLE HUS-544100302
...
544100801
RETURN SPRING HUS-544100801
...
544101702
VIBRATION ABSORBER HUS-544101702
...
544112101
HOLDER HUS-544112101
...
544143602
THROTTLE HANDLE CPL HUS-544143602
...
544144901
WIRING ASSY. HUS-544144901
...
544171702
THROTTLE WIRE ASSY HUS-544171702
...
544238401
HANDLE HUS-544238401
...
544238501
HANDLE HUS-544238501
...
731231401
NUT HUS-731231401
