Husqvarna 335 LS (2007-01) Trimmer

Model: 335 LS (2007-01)

Back To Assemblies

Save Part Not Listed?
product name

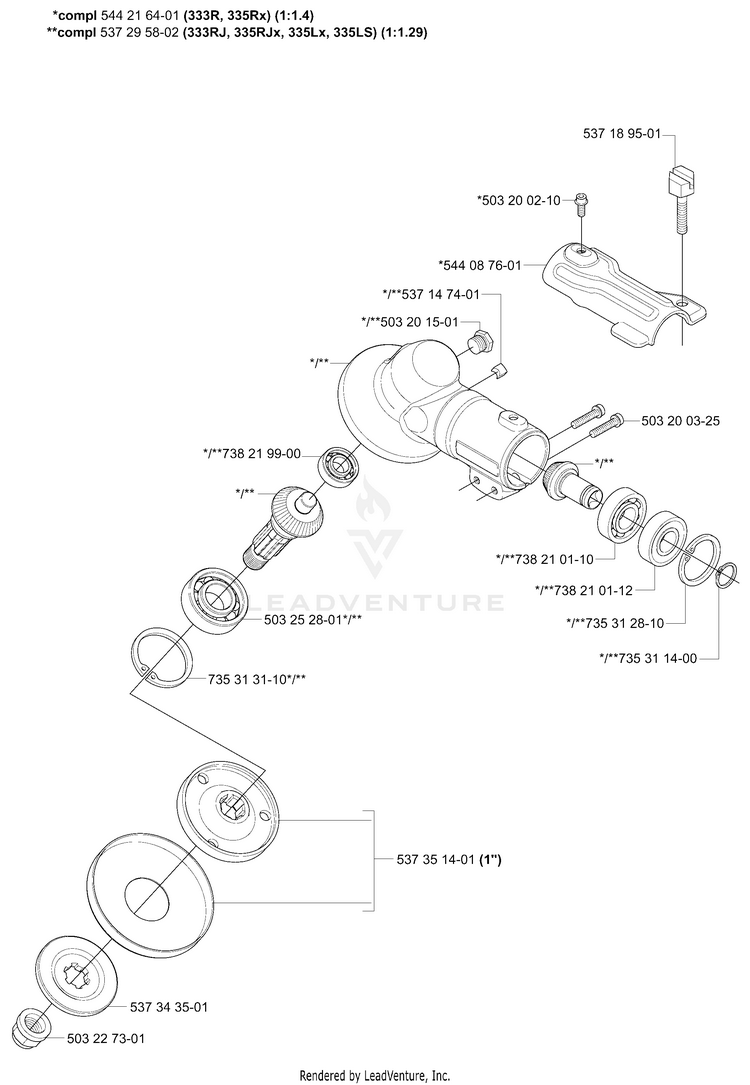

Gear Head

...
...
503200210
SCREW M5 X 10 HUS-503200710
...
503200325
SCREW HUS-503200325
...
503201501
PLUG HUS-503201501
...
503227301
NUT BLADE HUS-502291101
...
503252801
BALL BEARING HUS-503252801
...
537147401
MAGNET HUS-537147401
...
537189501
SCREW HUS-537189501
...
537295802
GEAR CASE SET HUS-537295804
...
537343501
FLANGE HUS-537343502
...
537351401
CARRIER HUS-537351402
...
544087601
CLAMP HUS-574306803
...
544216401
GEAR COMPLETE HUS-544216401
...
735311400
SEEGER CLIP HUS-735311400
...
735312810
RETAINING RING SGH 28 HUS-735312810
...
735313110
RETAINING RING HUS-735313110
...
738210110
BALL BEARING HUS-738210110
...
738210112
BALL BEARING HUS-738210112
...
738219900
BALL BEARING 24X9X1/609ZR HUS-738219900
