Husqvarna 335 LS (2007-01) Trimmer

Model: 335 LS (2007-01)

Back To Assemblies

Save Part Not Listed?
product name

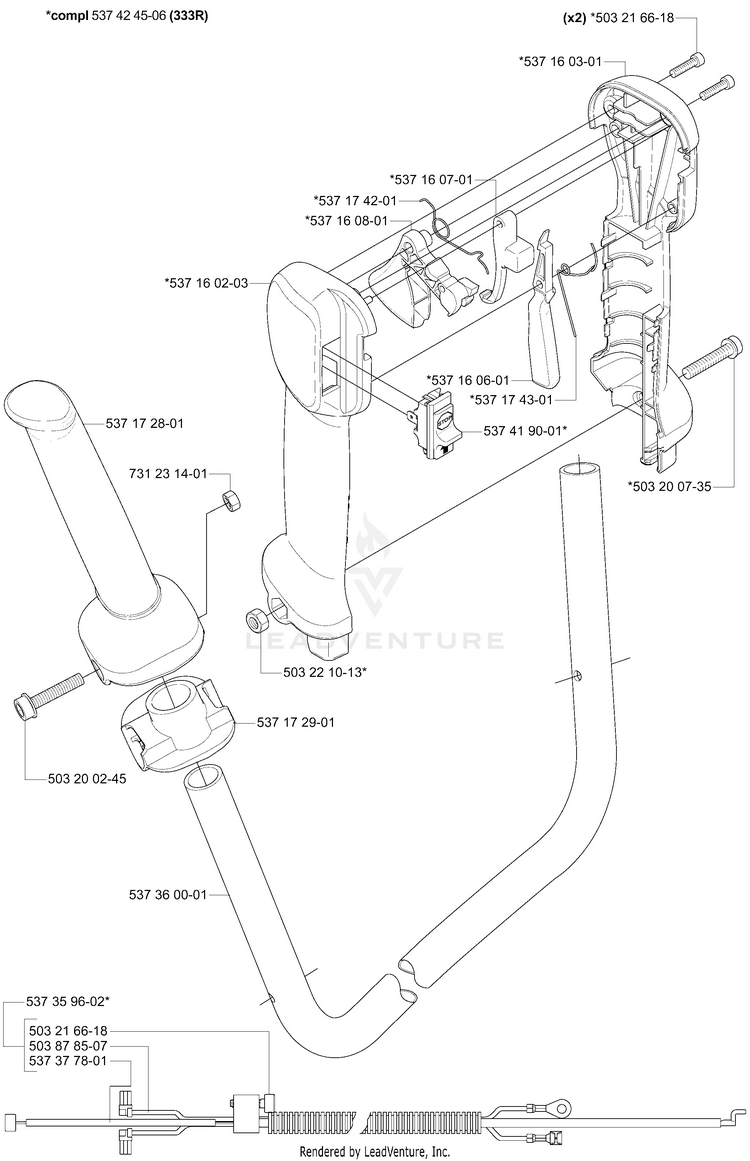

Handle 333R

...
...
503200245
SCREW HUS-503200245
...
503200735
SCREW IHSCFM HUS-503200782
...
503216618
SCREW HUS-503216618
...
503216618
SCREW HUS-503216618
...
503221013
NUT HUS-503221013
...
503878507
SHORT CIRCUIT CABLE HUS-503878507
...
537160203
HANDLE HUS-537160203
...
537160301
HANDLE HUS-537160301
...
537160601
THROTTLE CONTROL HUS-506497701
...
537160701
STARTER THROTTLE LOCK HUS-537160703
...
537160801
THROTTLE CONTROL HUS-506497701
...
537172801
HANDLE HUS-537172801
...
537172901
BRACKET HUS-537172901
...
537174201
SPRING HUS-537174201
...
537174301
SPRING HUS-537174301
...
537359602
WIRING KIT COMPLETE HUS-537359602
...
537360001
HANDLE HUS-537360001
...
537377801
THROTTLE WIRE HUS-537377801
...
537419001
STOP BUTTON HUS-537419001
...
537424506
HANDLE SYSTEM ASSY HUS-537424509
...
731231401
NUT HUS-731231401
