Husqvarna 335 LS (2007-01) Trimmer

Model: 335 LS (2007-01)

Back To Assemblies

Save Part Not Listed?
product name

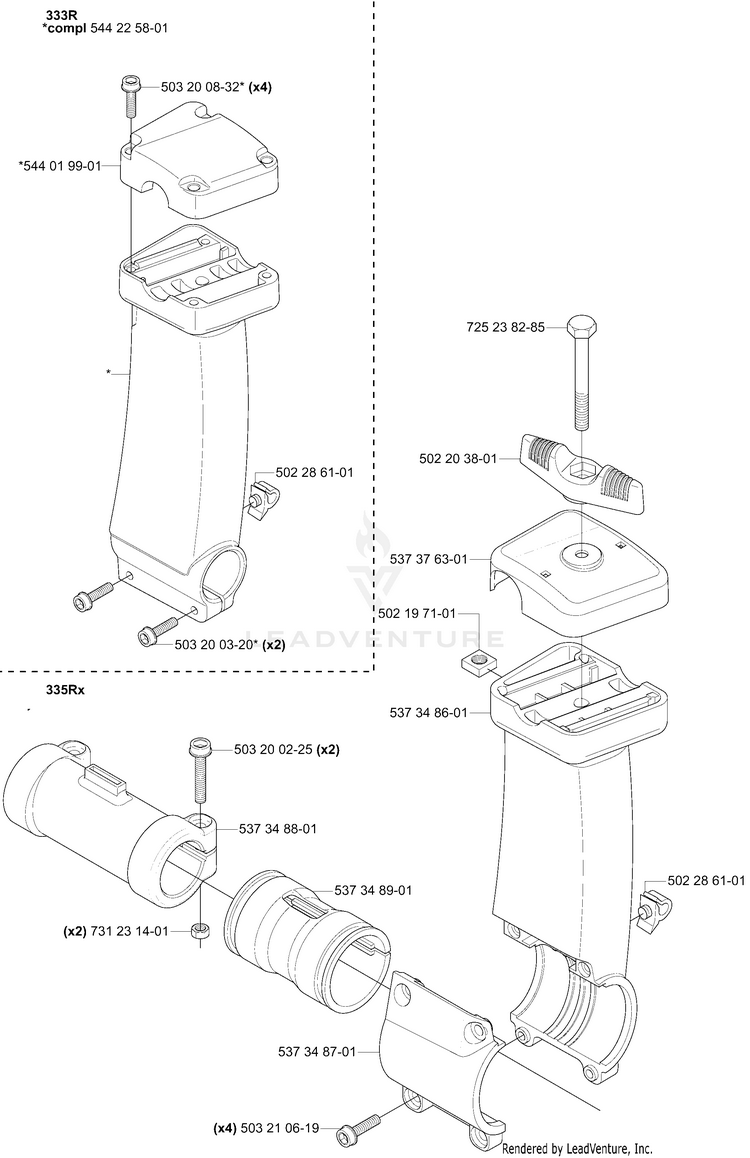

Handle 333R, 335Rx Tower

...
...
502197101
NUT HUS-502197101
...
502203801
HANDLE HUS-502203801
...
502286101
CLAMP HUS-502286101
...
503200225
SCREW HUS-503200225
...
503200320
SCREW HUS-503200320
...
503200832
SCREW HUS-503200832
...
503210619
Screws HUS-503214974
...
537348601
BRACKET HUS-544058101
...
537348701
COVER, BRACKET HUS-537348701
...
537348801
SLEEVE TUBE HUS-537348801
...
537348901
VIBRATIONS ABSORBER HUS-537348903
...
537376301
PROTECTOR CLAMP HUS-537376301
...
544019901
HOLDER HANDLE HUS-544019901
...
544225801
HOLDER HANDLE HUS-544225801
...
725238285
SCREW EHHM HUS-725238281
...
731231401
NUT HUS-731231401
