product name

Husqvarna 334 T (2006-01) Chain Saw

Model: 334 T (2006-01)

Back To Assemblies

Save Part Not Listed?
product name

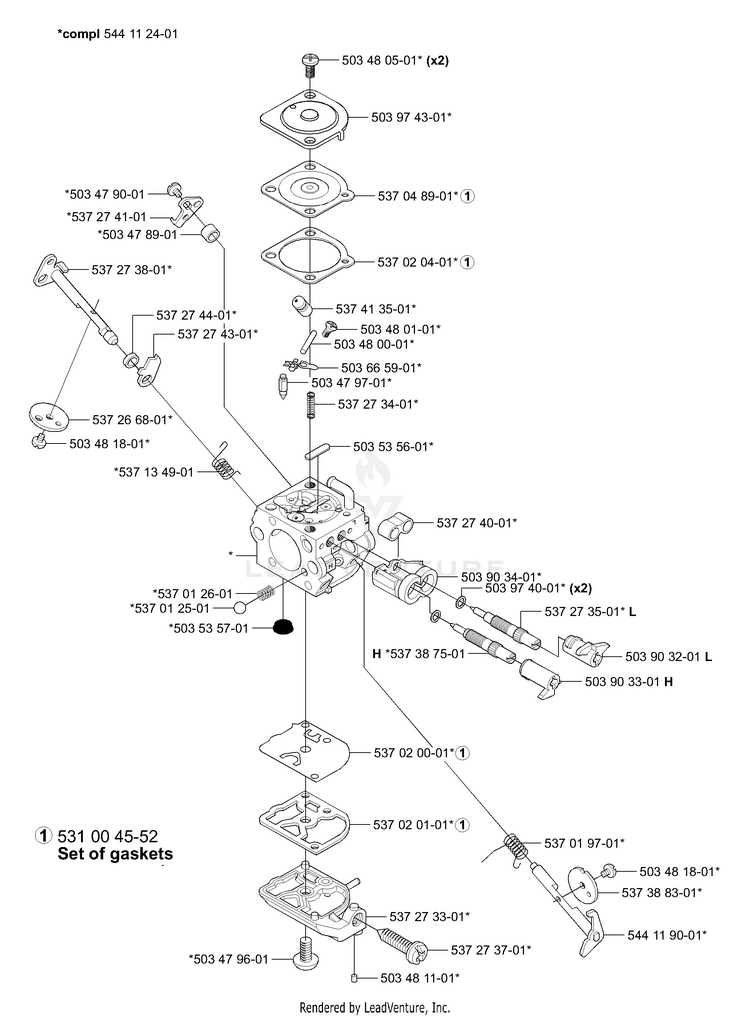

Carburetor Parts

...
...
503478901
SPACER HUS-503478901
...
503479001
SCREW HUS-503479001
...
503479601
SCREW HUS-503479601
...
503479701
INLET NEEDLE HUS-503479701
...
503480001
PIN HUS-537020801
...
503480101
SCREW HUS-503480101
...
503480501
SCREW HUS-503480501
...
503481101
PLUG HUS-503481101
...
503481801
SCREW HUS-503481801
...
503535601
PLUG HUS-503535601
...
503535701
STRAINER HUS-503535701
...
503665901
LEVER HUS-503665901
...
503903201
LIMITER CAP HUS-503903201
...
503903301
LIMITER CAP HUS-503903301
...
503903401
SLEEVE HUS-503903401
...
503974001
WASHER HUS-503974001
...
503974301
COVER HUS-503974301
...
531004552
GASKET KIT (ZAMA GND39) HUS-531004552
...
537012501
BALL HUS-537012501
...
537012601
SPRING HUS-537012601
...
537019701
SPRING THROTTLE HUS-537019701
...
537020001
PUMP DIAPHRAGM HUS-537020001
...
537020101
GASKET HUS-537020101
...
537020401
GASKET HUS-537020401
...
537048901
DIAPHRAGM HUS-537048901
...
537134901
SPRING HUS-537134901
...
537266801
CHOKE FLAP HUS-537266801
...
537273301
COVER HUS-537273301
...
537273401
SPRING HUS-537273401
...
537273501
LOW SPEED NEEDLE HUS-537273501
...
537273701
SCREW HUS-537273701
...
537273801
SHAFT HUS-537273801
...
537274001
SPRING HUS-537274001
...
537274101
ARM HUS-537274101
...
537274301
ARM HUS-537274301
...
537274401
WASHER HUS-537274401
...
537387501
SCREW HUS-537387501
...
537388301
THROTTLE FLAP HUS-537388301
...
537413501
NOZZLE HUS-537413501
...
544112401
CARBURETOR HUS-544160901
...
544119001
SHAFT HUS-544119001
