Husqvarna 330 Type 2 (2006-09) Chain Saw

Model: 330 Type 2 (2006-09)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Engine Type 1-2

...
...
1
Flywheel Ass’y. Kit HUS-530069890
...
2
Nut-Flywheel HUS-530049819
...
3
Spring-Starter Dog HUS-530023817
...
4
Washer HUS-530016242
...
5
Starter Pulley HUS-530053728
...
6
SPRING HUS-545008012
...
7
Baffle Plate HUS-530052435
...
8
Fan Housing Ass’y. HUS-530049938
...
9
Screw HUS-530015812
...
10
Washer-Conical HUS-530015441
...
11
Screw HUS-530015920
...
12
Muffler Back Plate HUS-530053595
...
13
Kit - Gasket (incl. 39,40 pg.1 : 13 pg.2 : 2,3 pg.3) HUS-530069487
...
14
Screw HUS-530015241
...
15
Handle-Starter HUS-530056422
...
16
Boot-Intake HUS-530030202
...
17
Screw HUS-530016291
...
18
Rope Kit HUS-530069919
...
19
Clip HUS-530015696
...
20
Assy-Oil Cap (Incl. "O" Ring) HUS-530057236
...
21
Screw HUS-530015708
...
22
Ignition Module HUS-530039128
...
23
Screw HUS-530015707
...
24
Screw HUS-530015306
...
25
Clamp HUS-530027264
...
26
Crankshaft Bearing HUS-530032093
...
27
Flywheel Key HUS-530002595
...
28
Crankshaft & Rod Ass’y. HUS-530027143
...
29
Piston Pin Bearing HUS-530032111
...
30
Piston Kit (Incl. 29, 45 & 46) HUS-530071321
...
31
Screw HUS-530015875
...
32
Spur HUS-952027846
...
33
Crankshaft Seal HUS-530019146
...
34
Crankcase Ass’y. HUS-530069893
...
35
Screw HUS-530016259
...
36
Washer HUS-530015722
...
37
Muffler Cover HUS-530053465
...
38
Spark Arrestor Screen HUS-530030205
...
39
Gasket Kit HUS-530069487
...
40
Muffler Gasket HUS-530069487
...
41
Snap Ring HUS-530001516
...
42
Cylinder Ass’y. HUS-530403749
...
43
Spark Plug (RCJ-6Y) HUS-952030249
...
44
Clamp Ass’y. HUS-530027285
...
45
Piston Ring HUS-530030176
...
46
Retainer HUS-530015697
...
47
Screw HUS-530001624
...
48
Washer HUS-530015629
...
49
Muffler Body HUS-530053596
...
50
Muffler Diffuser HUS-530049362
...
51
Screw HUS-530016080
...
52
Exh Port Insulator HUS-530053710
...
52
Operator Manual Not Shown HUS-545123577
...
52
Warning Decal Not Shown HUS-530047839
...
52
Kickback Warning Decal Not Shown HUS-530047941

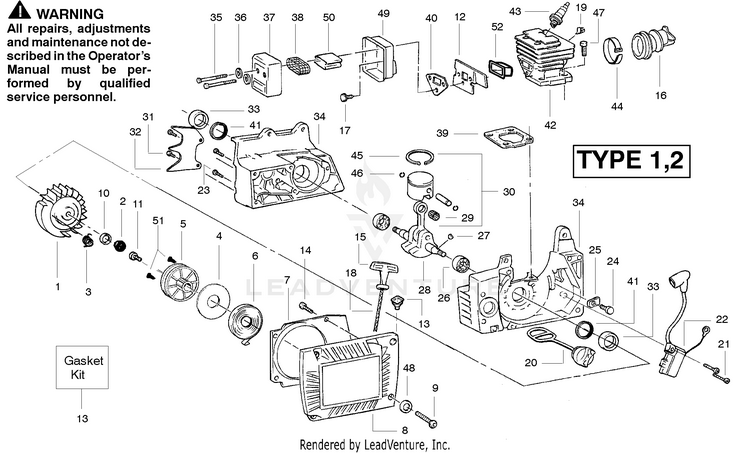

Schematic Image Zoomed
