Husqvarna 330 Type 2 (2006-09) Chain Saw

Model: 330 Type 2 (2006-09)

Back To Assemblies

Save Part Not Listed?
product name

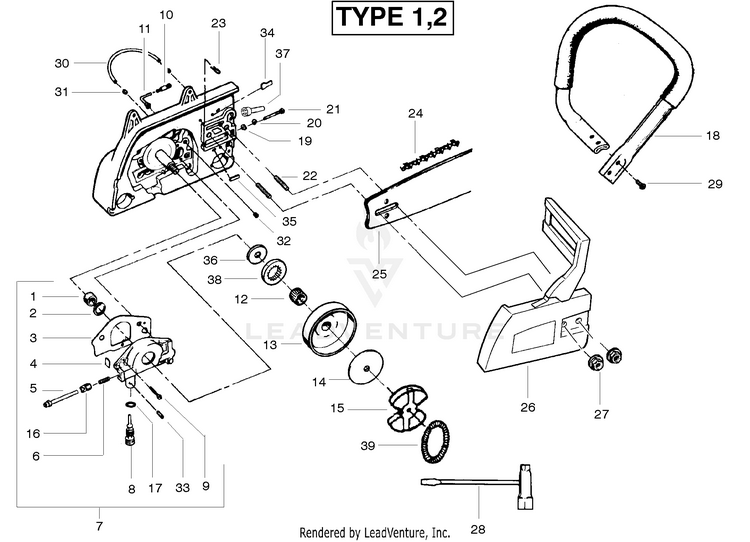

Chain Brake & Clutch

...
...
1
Wire Worm Gear HUS-530027140
...
2
Seal-Oil Pump HUS-530019147
...
3
Gasket - Carb. HUS-530069487
...
4
Dust Plug HUS-530027128
...
5
Shaft Ass’y. HUS-530014204
...
6
Spring-Plunger HUS-530027126
...
7
Oil Pump Ass’y. HUS-530069218
...
8
Screw Oiler Adjusting HUS-530015873
...
9
Screw HUS-530015650
...
10
Oil & Filter Pickup HUS-530027272
...
11
Oiler Intake Line HUS-530027192
...
12
Bearing HUS-530032049
...
13
Drum & Adaptor Ass’y. HUS-530048083
...
14
Clutch Plate HUS-530027161
...
15
Clutch Ass’y. HUS-530014161
...
16
Gear Spur HUS-530027129
...
17
O" Ring HUS-530019079
...
18
Handlebar Ass’y. HUS-530047163
...
19
Guide Bar Pin HUS-530023064
...
20
Retainer-Bar Adjust HUS-530038593
...
21
Screw HUS-530016110
...
22
Bar Stud HUS-530016238
...
23
Cotter Pin HUS-530015108
...
24
Chain 20" HUS-952051266
...
24
Chain 22" HUS-952051459
...
25
Bar 20" HUS-952044561
...
25
Bar 22" HUS-530044833
...
26
Chain Brake Kit HUS-952069321
...
27
Nut-Bar Mounting HUS-530015251
...
28
Scrench HUS-530031163
...
28
SCRENCH HUS-545006011
...
29
Screw HUS-530016058
...
30
Oiler Line HUS-530021061
...
31
Ferrule HUS-530002464
...
32
Nut-Slotted Tube HUS-530015422
...
33
Pin-Adjustment Screw HUS-530015752
...
34
Chain Pad - Top HUS-530027222
...
35
Chain Pad HUS-530027223
...
36
Thrust Washer HUS-530015733
...
37
Crankcase Plug HUS-530029236
...
38
Rim Floating (3/8) HUS-530048098
...
39
Spring - Clutch HUS-530027160
