Husqvarna 327P Pruner/Pole Saw

Model: 327P

Back To Assemblies

Save Part Not Listed?
product name

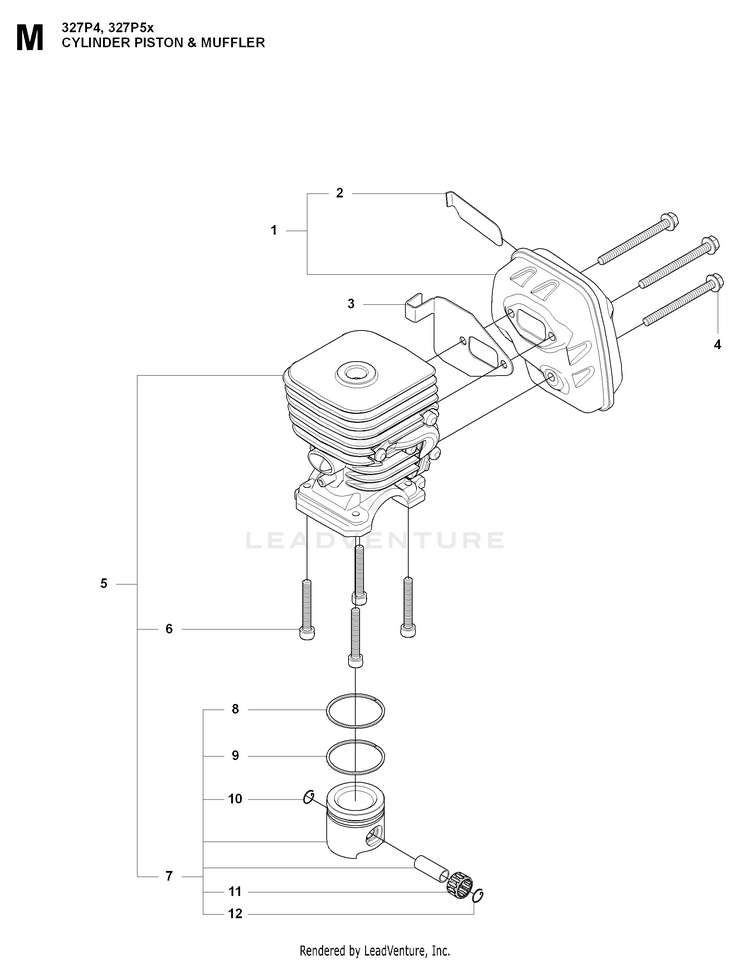

CYLINDER, PISTON & MUFFLER 2

...
...
11
BEARING HUS-503712201
...
2
SPARK ARRESTOR SCREEN HUS-537221801
...
7
PISTON HUS-537405902
...
6
SCREW IHSCFM HUS-503200782
...
4
BOLT HUS-502078101
...
9
PISTON RING HUS-537406201
...
1
MUFFLER KIT Cat. HUS-504037801
...
8
PISTON RING HUS-537406201
...
10
CLIP RING HUS-737440800
...
3
GASKET HUS-537014101
...
12
CLIP RING HUS-737440800
...
5
CYLINDER COMPL Ø=34mm HUS-537085103
