product name

Husqvarna 327P Pruner/Pole Saw

Model: 327P

Back To Assemblies

Save Part Not Listed?
product name

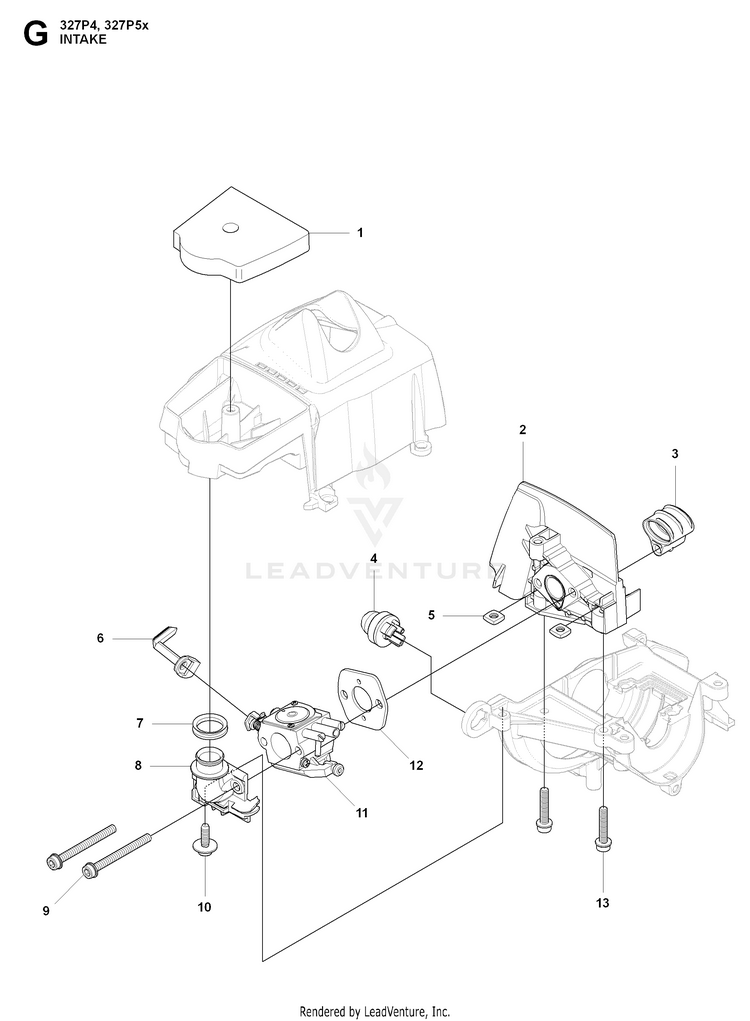

CARBURETOR & AIR FILTER

...
...
12
GASKET HUS-503497101
...
2
PARTITION HUS-503910901
...
11
KIT CARB Zama C1Q-EL24, NOT FOR US HUS-588171156
...
3
PIPE HUS-503942601
...
1
AIR FILTER HUS-537143101
...
9
SCREW HUS-503217550
...
4
AIR PURGE BUBBLE HUS-503936601
...
5
NUT HUS-503226504
...
7
SEALING HUS-740681121
...
11
CARBURETOR Hualong HQ-2, only option for US HUS-576019801
...
8
BRACKET HUS-502499001
...
10
SCREW HUS-503217716
...
13
SCREW HUS-503200325
...
6
CHOKE CONTROL HUS-503962501
