product name

Husqvarna 327P Pruner/Pole Saw

Model: 327P

Back To Assemblies

Save Part Not Listed?
product name

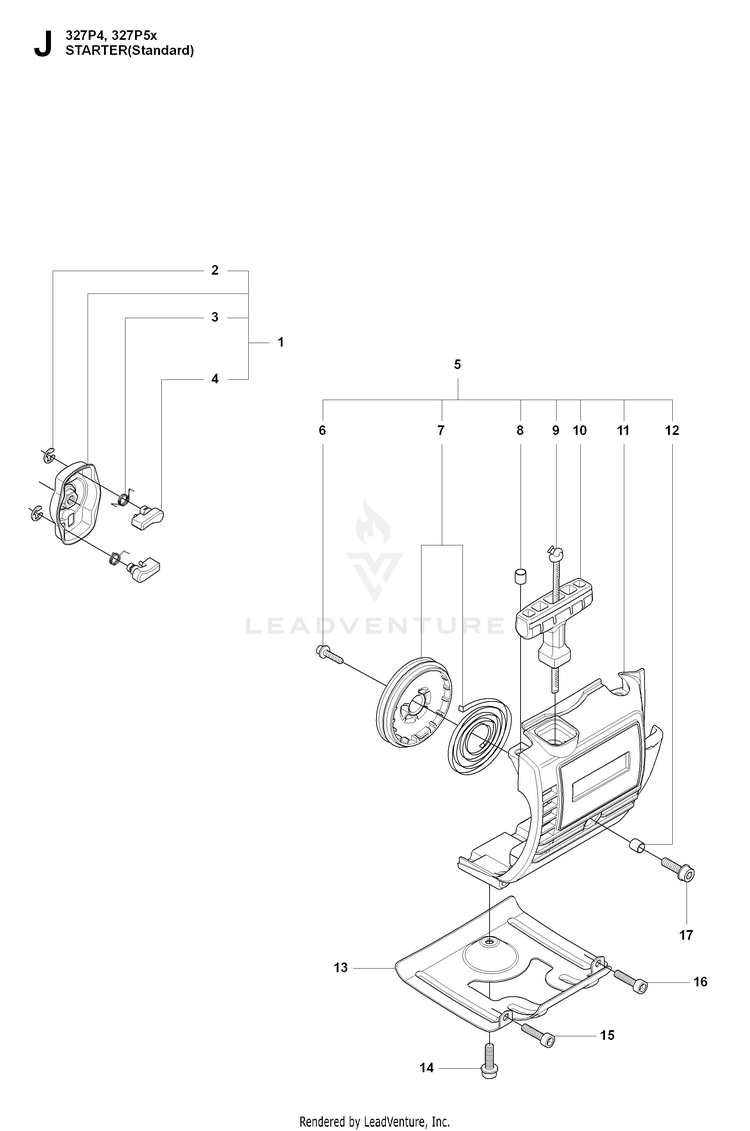

STARTER

...
...
6
SCREW HUS-503217716
...
13
PLATE HUS-537034101
...
15
SCREW HUS-503216618
...
11
STARTER HOUSING HUS-503858703
...
14
SCREW M5x12 HUS-503201412
...
16
SCREW HUS-503216618
...
7
STARTER PULLEY ASSY. HUS-503964901
...
8
SPACING SLEEVE HUS-537379302
...
9
STARTER ROPE HUS-503858901
...
2
E-RING 4 HUS-735310820
...
10
STARTER HANDLE HUS-537008401
...
17
SCREW M5x16 HUS-503200316
...
4
STARTER PAWL HUS-544011401
...
12
SPACING SLEEVE HUS-537379302
...
5
STARTER ASSY HUS-503852807
...
1
STARTER PAWL BRIDGE HUS-503873305
...
3
SPRING HUS-503873601
