Husqvarna 327P Pruner/Pole Saw

Model: 327P

Back To Assemblies

Save Part Not Listed?
product name

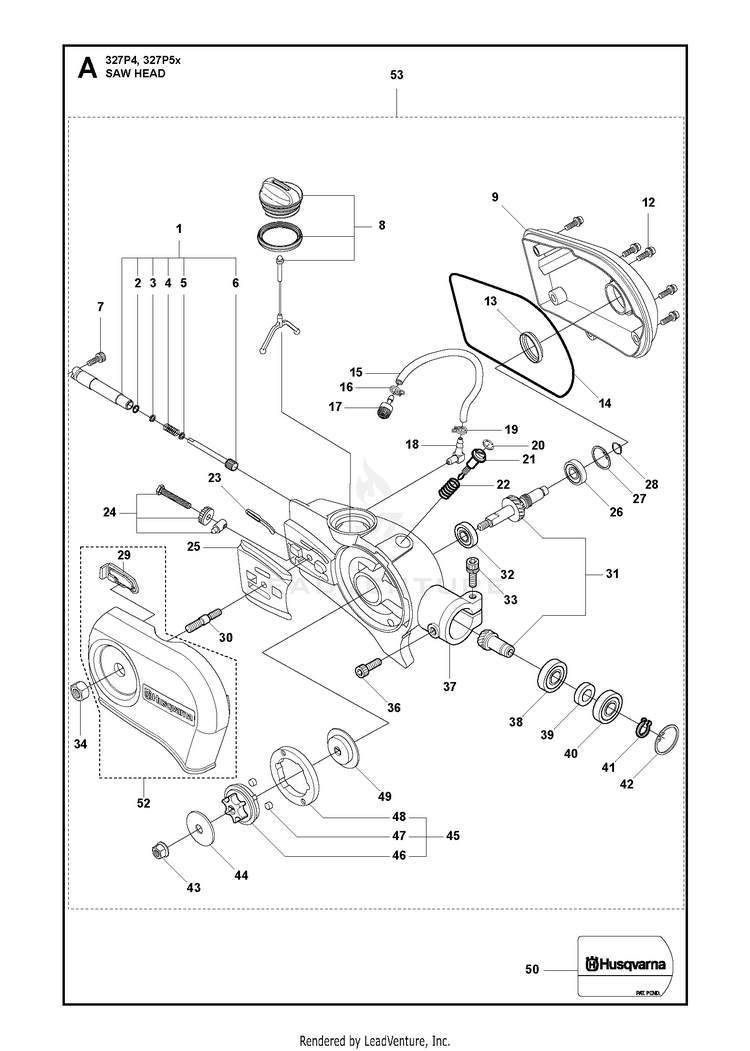

SAW HEAD

...
...
3
WASHER 5.1X8.5 HUS-503230016
...
19
CLIP HUS-537371501
...
16
CLIP HUS-537371501
...
26
BALL BEARING HUS-738210004
...
5
WASHER 5.1X8.5 HUS-503230016
...
18
NIPPLE HUS-504340004
...
46
SPROCKET HUS-537271501
...
9
Caps HUS-593620401
...
31
GEAR HUS-537299001
...
33
SCREW MC6S 5X25 HUS-725533355
...
42
RETAINING RING HUS-735312510
...
7
SCREW MC6S 5X12 HUS-725532755
...
28
RETAINING RING SGA 10 HUS-735311200
...
52
CHAIN GUARD HUS-575541801
...
44
FENDER WASHER HUS-503230068
...
1
OIL PUMP HUS-537299201
...
32
BALL BEARING HUS-738219904
...
40
BALL BEARING HUS-738219904
...
30
BAR BOLT M7-M8 HUS-576293001
...
13
RING HUS-537330101
...
36
SCREW MC6S 5X12 HUS-725532755
...
30
BOLT M6-M8 HUS-537194401
...
22
SPRING HUS-503978201
...
53
Cutting Head HUS-537247103
...
38
BALL BEARING HUS-738219904
...
43
FLANGE NUT HUS-731711651
...
27
RETAINING RING SGH 26 HUS-735312710
...
2
O-RING HUS-740420300
...
23
SEALING HUS-537331701
...
21
SCREW HUS-537056801
...
14
O-RING HUS-537291001
...
41
RETAINING RING HUS-735311100
...
6
PUMP PISTON HUS-503808303
...
48
FLYWHEEL HUS-537271401
...
20
RETAINING RING HUS-537290901
...
50
DECAL HUS-537230001
...
37
HOUSING HUS-537227401
...
4
SPRING HUS-503184901
...
45
SPROCKET KIT HUS-537271801
...
25
PLATE HUS-537194201
...
47
VIBRATION ABSORBER HUS-537271701
...
39
SPACER SLEEVE HUS-537247701
...
12
SCREW MC6S 5X16 HUS-725532955
...
34
NUT HUS-731231801
...
15
HOSE HUS-537291101
...
24
CHAIN TENSIONER HUS-537228201
...
17
OIL PLUMMET HUS-504710003
...
49
COVER HUS-537271601
...
8
OIL TANK CAP GREY HUS-537281502
...
29
CHAIN GUARD HUS-575541801
