Husqvarna 327LS (2009-08) Trimmer

Model: 327LS (2009-08)

Back To Assemblies

Save Part Not Listed?
product name

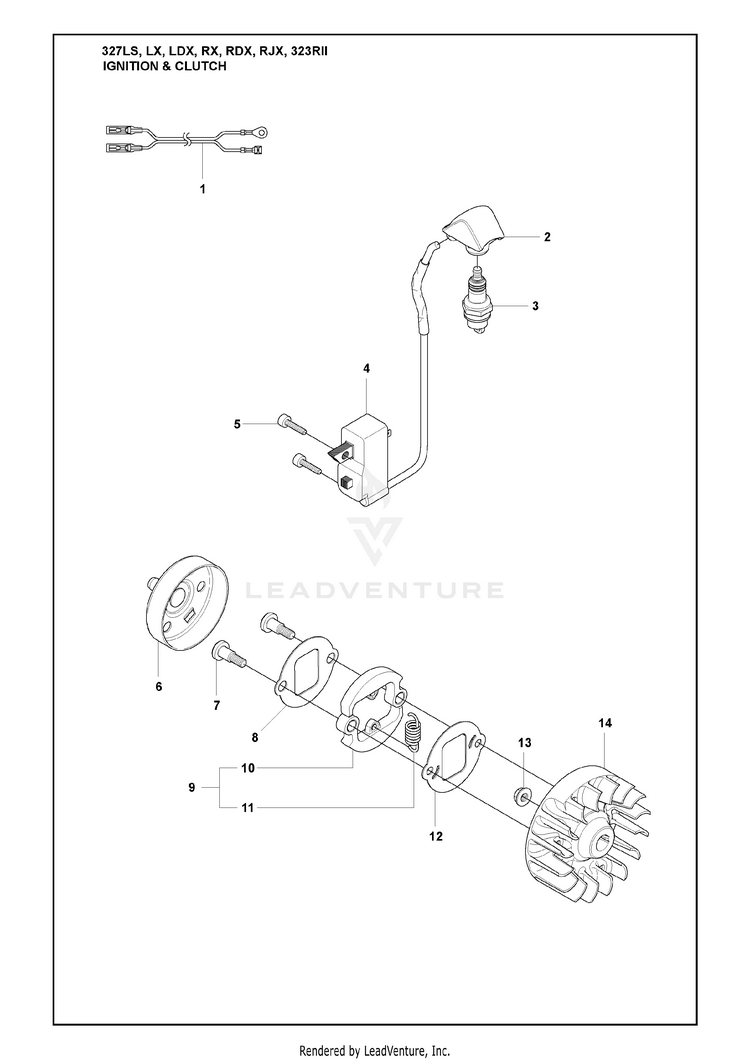

Ignition & Clutch

...
...
1
SHORT CIRCUIT CABLE HUS-502493601
...
2
SPARK PLUG CAP HUS-590056201
...
3
PLUG SPARK (RCJ6-Y) Champion RCJ 6Y HUS-530030179
...
4
IGNITION MODULE OPS HUS-544127002
...
5
SCREW HUS-503216618
...
6
CLUTCH DRUM HUS-537237501
...
7
SCREW HUS-503842902
...
8
WASHER, CLUTCH HUS-537046702
...
9
CLUTCH HUS-537032201
...
10
CLUTCH HUS-503842801
...
11
SPRING HUS-503816001
...
12
WASHER HUS-537046802
...
13
FLANGE NUT HUS-731711651
...
14
FLYWHEEL HUS-537249602
