Husqvarna 327 RJX Brushcutter/Clearing Saw

Model: 327 RJX

Back To Assemblies

Save Part Not Listed?
product name

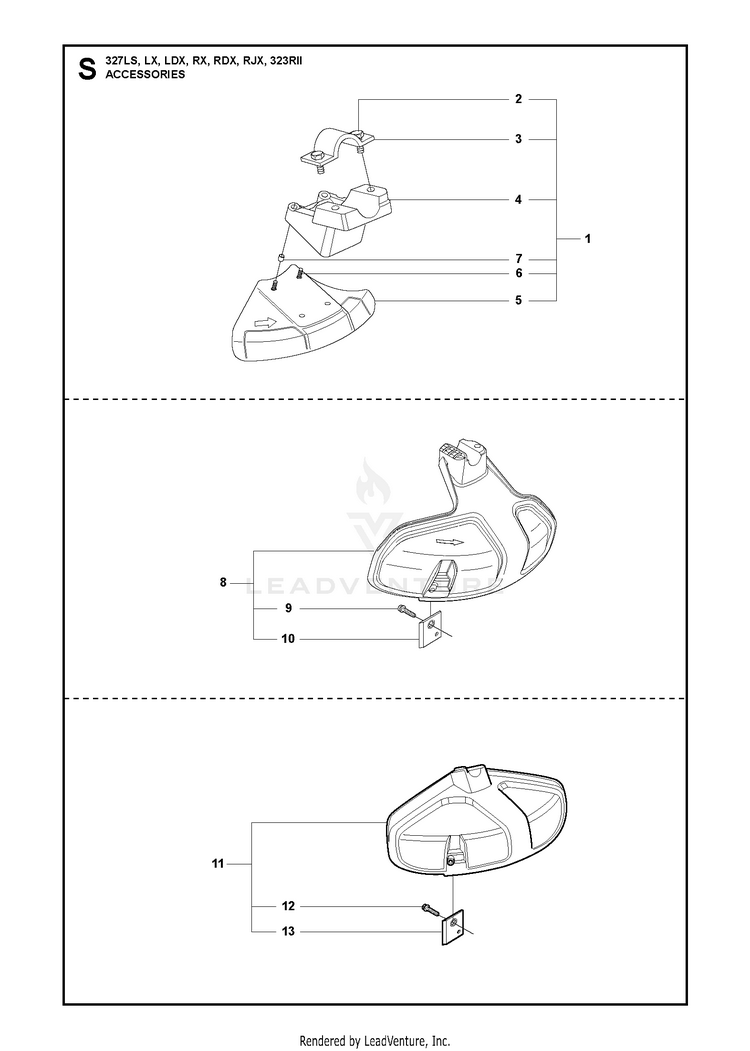

ACCESSORIES 2

...
...
8
TRIMMER GUARD 323L MFL. 327Lx, 327LDx HUS-588543701
...
11
COMBINATION GUARD 323RII, 327Rx HUS-588117901
...
12
SCREW HUS-503210716
...
7
LOCKING NUT Captive screws HUS-574039501
...
9
SCREW HUS-503210716
...
10
BLADE HUS-503798802
...
6
SCREW Captive screws HUS-503200316
...
3
CLAMP ASSY Captive screws HUS-574568001
...
1
ACCESSORY BAG Captive screws 323RII, 327Rx HUS-544044210
...
4
ADAPTER HUS-537293401
...
13
BLADE HUS-503798802
...
5
BLADE GUARD Captive screws HUS-574532601
...
2
SCREW IHSCFMO Captive screws HUS-573994304
