Husqvarna 327 RJX Brushcutter/Clearing Saw

Model: 327 RJX

Back To Assemblies

Save Part Not Listed?
product name

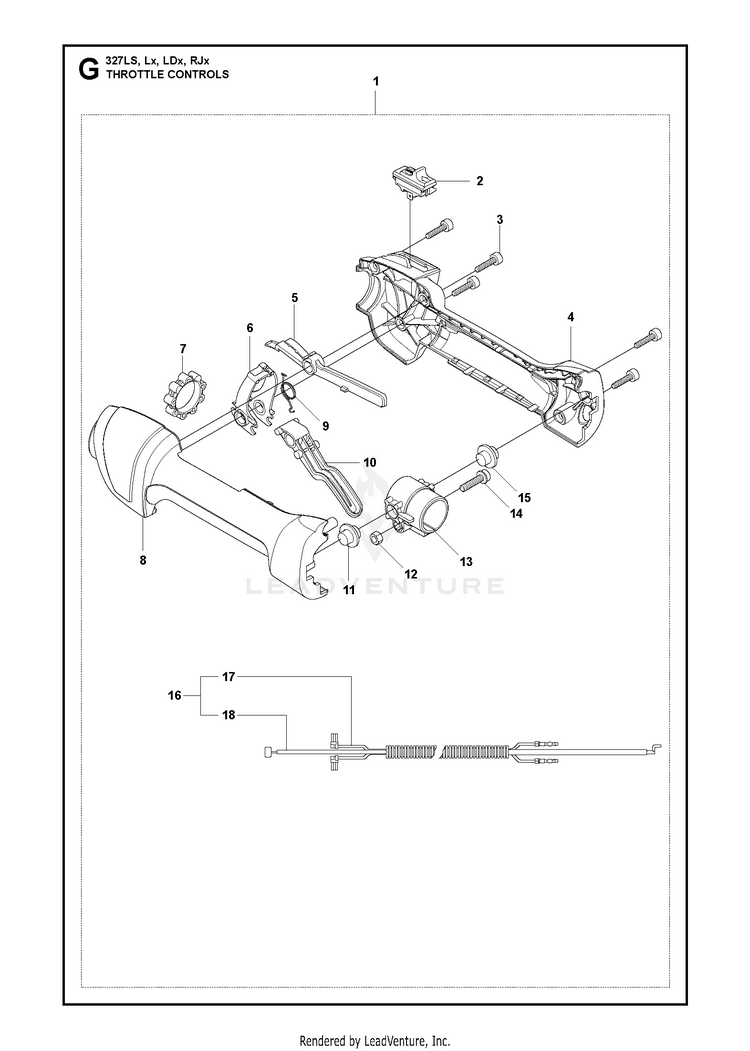

HANDLE & CONTROLS

...
...
18
THROTTLE WIRE ASSY HUS-544171703
...
11
VIBRATION ABSORBER HUS-544101702
...
1
ASSY THROTTLE CONTROL HUS-544143604
...
5
THROTTLE LOCK HUS-503878001
...
13
HOLDER HUS-544112101
...
9
RETURN SPRING HUS-544100801
...
12
NUT HUS-731231401
...
14
SCREW HUS-503200320
...
2
STOP BUTTON HUS-537419001
...
7
VIBRATION DAMPER HUS-503961401
...
6
LEVER HUS-503918101
...
17
SHORT CIRCUIT CABLE HUS-502531601
...
3
SCREW HUS-503216618
...
16
WIRING HUS-502651301
...
15
VIBRATION ABSORBER HUS-544101702
...
8
HANDLE HUS-544100302
...
10
THROTTLE TRIGGER HUS-503877903
...
4
HANDLE HUS-544100202
