Husqvarna 327 RJX Brushcutter/Clearing Saw

Model: 327 RJX

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

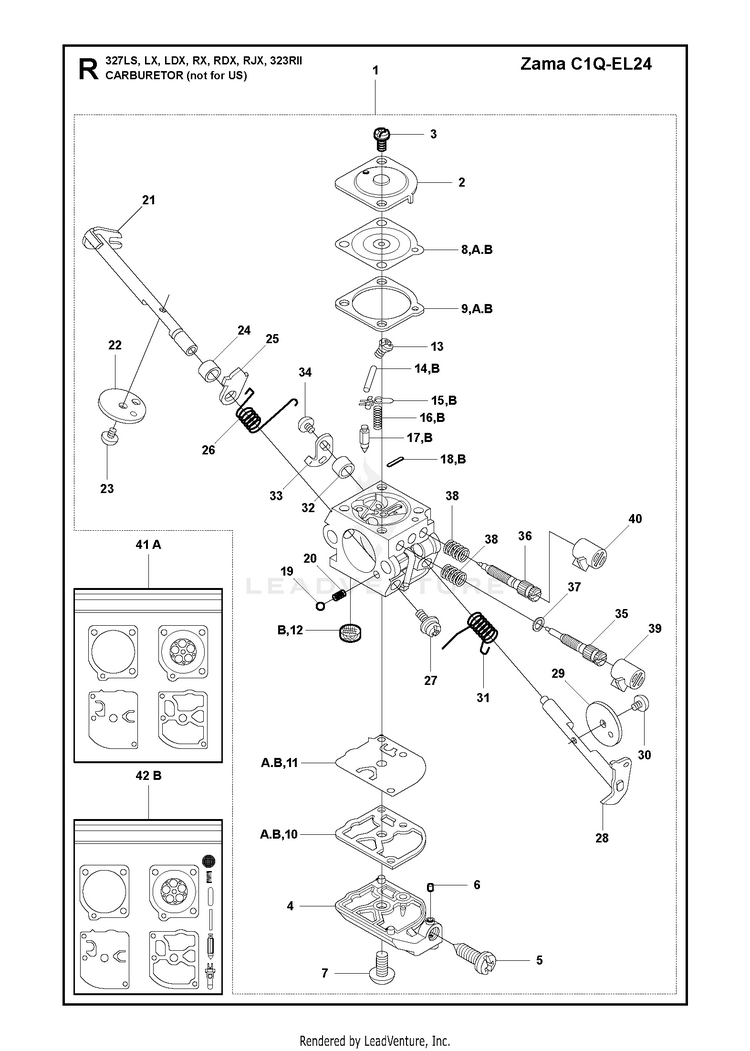

CARBURETOR, NOT FOR US

...
...
20
SPRING HUS-537012601
...
1
KIT CARB Zama C1Q-EL24, NOT FOR US HUS-588171156
...
7
SCREW HUS-503479601
...
17
INLET NEEDLE HUS-503479701
...
37
WASHER HUS-503974001
...
18
PIN HUS-537020801
...
35
NEEDLE HIGH SPEED HUS-537020601
...
21
CHOKE SHAFT HUS-537020901
...
31
SPRING THROTTLE HUS-537019701
...
19
BALL HUS-537012501
...
36
LOW SPEED NEEDLE HUS-537127801
...
30
SCREW HUS-503479201
...
14
PIN HUS-537020801
...
4
COVER HUS-537020201
...
9
GASKET HUS-537020401
...
34
SCREW HUS-503479001
...
28
SHAFT HUS-537019601
...
16
SPRING HUS-537273401
...
15
LEVER HUS-503665901
...
22
CHOKE CAP HUS-537370301
...
23
SCREW HUS-503481801
...
2
COVER HUS-503974301
...
40
CAP HUS-537021601
...
33
LEVER HUS-537019801
...
10
GASKET HUS-537020101
...
32
SPACER HUS-503478901
...
8
DIAPHRAGM HUS-537048901
...
12
STRAINER HUS-503535701
...
11
PUMP DIAPHRAGM HUS-537020001
...
42,B
CARBURETOR KIT (ZAMA RB69) HUS-531004553
...
38
SPRING HUS-503994301
...
41,A
GASKET KIT (ZAMA GND39) HUS-531004552
...
27
SCREW * HUS-503755301
...
13
SCREW HUS-503480101
...
26
SPRING HUS-537021001
...
6
PLUG HUS-503481101
...
25
LEVER HUS-537049001
...
5
SCREW HUS-537020701
...
29
THROTTLE FLAP HUS-537019901
...
3
SCREW HUS-503480501
...
24
BUSHING HUS-503481901
...
39
CAP HUS-537021601
