Husqvarna 327 RJX Brushcutter/Clearing Saw

Model: 327 RJX

Back To Assemblies

Save Part Not Listed?
product name

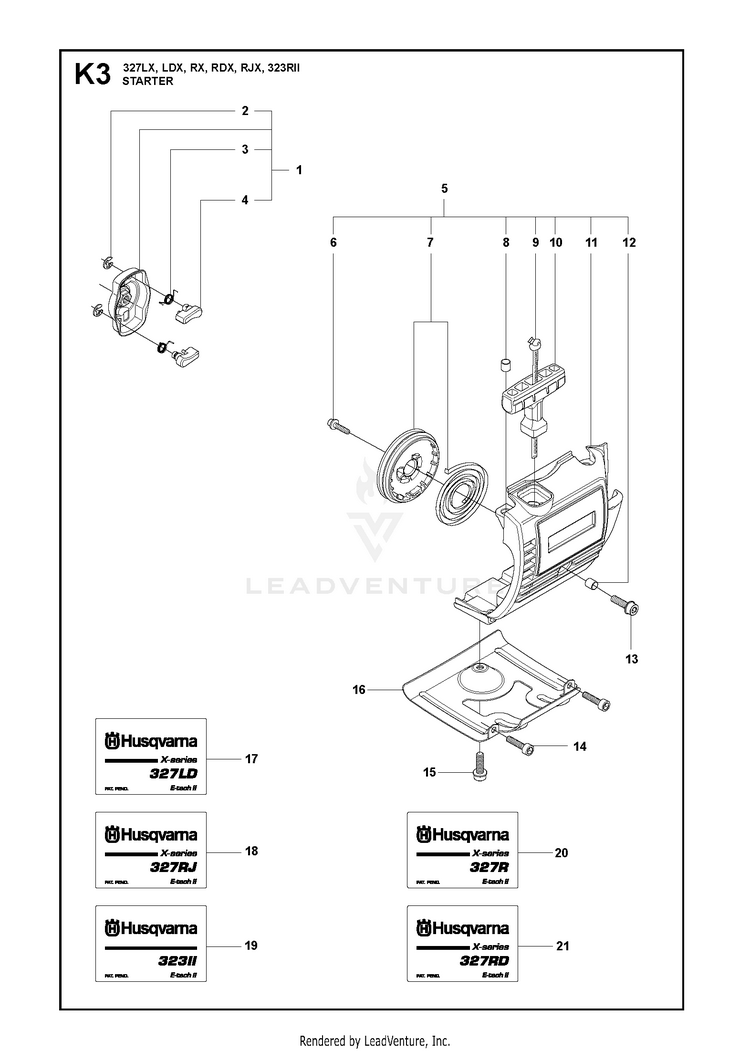

STARTER 3

...
...
6
SCREW HUS-503217716
...
20
LABEL 327RX 327Rx HUS-537353459
...
5
STARTER ASSY HUS-503852807
...
1
STARTER PAWL BRIDGE HUS-503873305
...
18
LABEL 327RJ 327RJx HUS-537353457
...
19
LABEL 323 RII 323RII HUS-537353458
...
3
SPRING HUS-503873601
...
12
SPACING SLEEVE HUS-537379302
...
8
SPACING SLEEVE HUS-537379302
...
4
STARTER PAWL HUS-544011401
...
7
STARTER PULLEY ASSY. HUS-503964901
...
17
LABEL 327LDX 327LDx HUS-537353456
...
15
SCREW M5x12 HUS-503201412
...
14
SCREW HUS-503216618
...
2
E-RING 4 HUS-735310820
...
16
PLATE HUS-537034101
...
11
STARTER HOUSING HUS-503858703
...
10
STARTER HANDLE HUS-537008401
...
21
LABEL 327RDX 327RDx HUS-537353460
...
9
STARTER ROPE HUS-503858901
...
13
SCREW M5x16 HUS-503200316
