Husqvarna 327 RJX Brushcutter/Clearing Saw

Model: 327 RJX

Back To Assemblies

Save Part Not Listed?

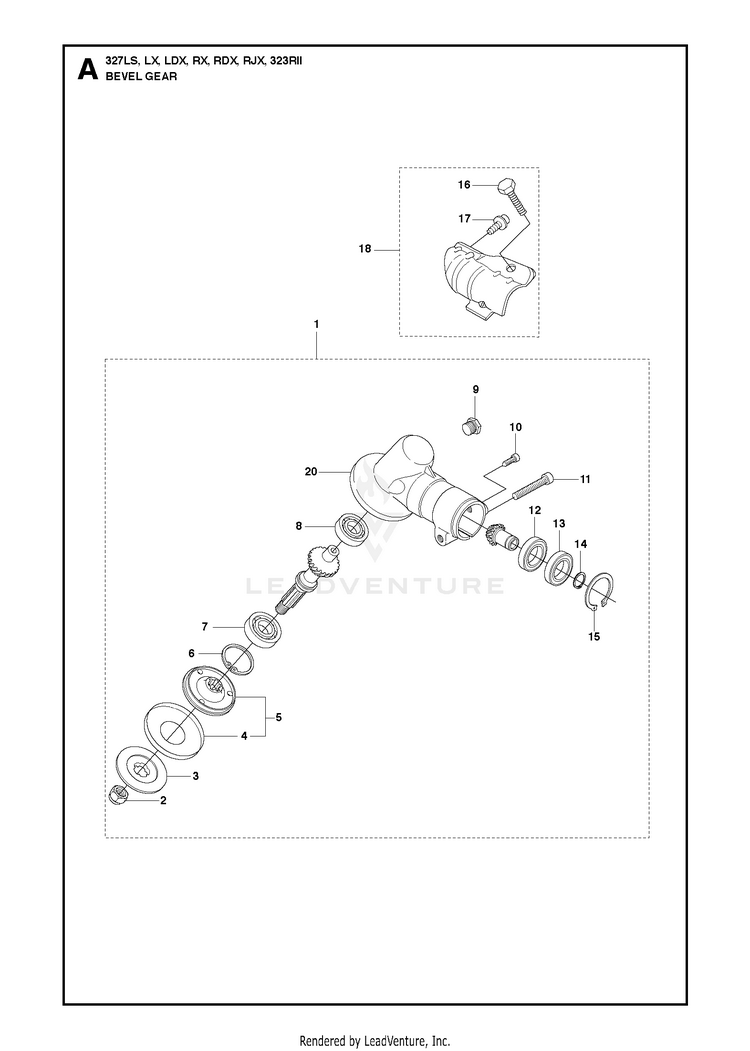

product name

BEVEL GEAR

...
...
20
GEAR HOUSING HUS-537333701
...
17
SCREW HUS-503200712
...
14
RETAINING RING HUS-735311100
...
2
GEARHEAD NUT - BRUSHCUTTER HUS-503856301
...
1
BEVEL GEAR ASSY HUS-536503801
...
11
SCREW HUS-503200725
...
7
HOLDER BALL BEARING HUS-525831801
...
3
SUPPORT FLANGE HUS-537285601
...
18
CLAMP Captive screws HUS-574306904
...
10
SCREW HUS-503201412
...
9
PLUG HUS-503201501
...
16
SCREW HUS-725237071
...
4
DRIVE DISC HUS-537234901
...
13
BEARING HUS-738219902
...
6
RETAINING RING SGH 28 HUS-735312810
...
15
RETAINING RING HUS-735312510
...
8
BALL BEARING 8X22X7/608Z HUS-738219800
...
12
BALL BEARING 24X9X1/609ZR HUS-738219900
...
5
DRIVE DISC HUS-537234901
