Husqvarna 327 RJX Brushcutter/Clearing Saw

Model: 327 RJX

Back To Assemblies

Save Part Not Listed?
product name

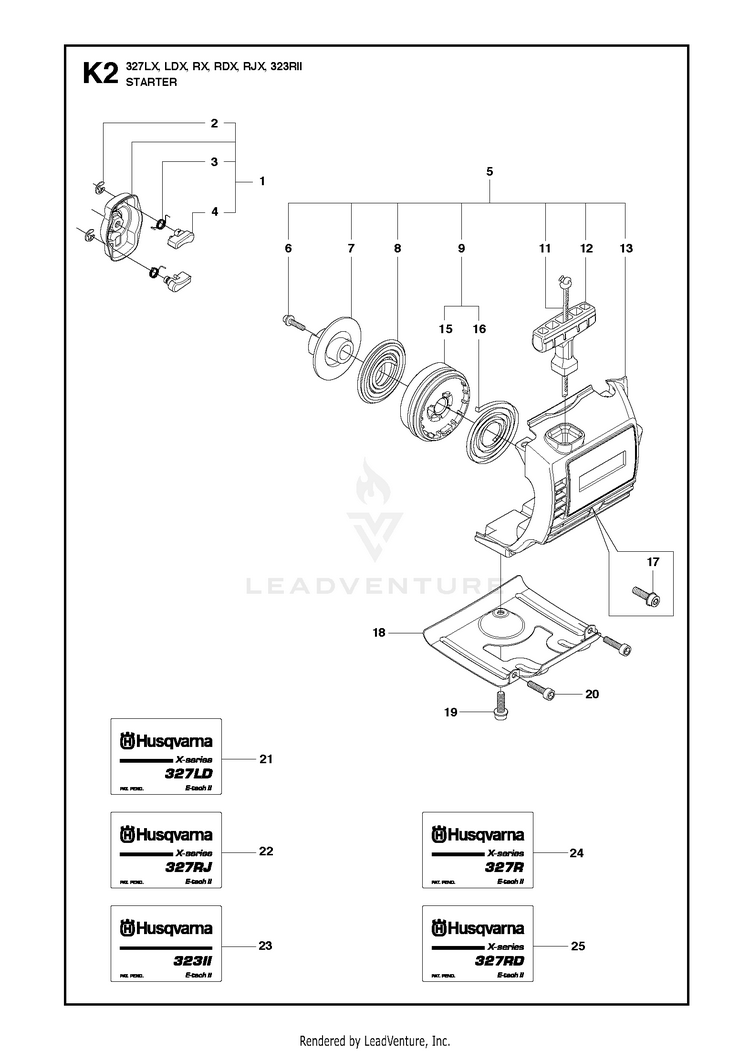

STARTER 2

...
...
13
STARTER HOUSING Captive screws HUS-537411602
...
20
SCREW HUS-503216618
...
2
E-RING 4 HUS-735310820
...
14
SPACING SLEEVE HUS-537379302
...
9
STARTER PULLEY HUS-544166501
...
19
SCREW M5x12 HUS-503201412
...
24
LABEL 327RX 327Rx HUS-537353459
...
21
LABEL 327LDX 327LDx HUS-537353456
...
8
SPRING - DRIVER HUS-544038802
...
23
LABEL 323 RII 323RII HUS-537353458
...
17
SCREW IHSCFMO Captive screw M5x16 HUS-574477003
...
7
PULLEY STARTER DRIVE HUS-579366201
...
25
LABEL 327RDX 327RDx HUS-537353460
...
11
STARTER ROPE HUS-503858901
...
1
STARTER PAWL BRIDGE HUS-503873305
...
15
STARTER PULLEY HUS-544038601
...
18
PLATE HUS-537034101
...
5
STARTER ASSY Captive screws HUS-544071103
...
12
STARTER HANDLE HUS-537008401
...
6
SCREW HUS-503217725
...
16
SPRING HUS-503859001
...
22
LABEL 327RJ 327RJx HUS-537353457
...
4
STARTER PAWL HUS-544011401
...
3
SPRING HUS-503873601
