Husqvarna 327 RJX Brushcutter/Clearing Saw

Model: 327 RJX

Back To Assemblies

Save Part Not Listed?
product name

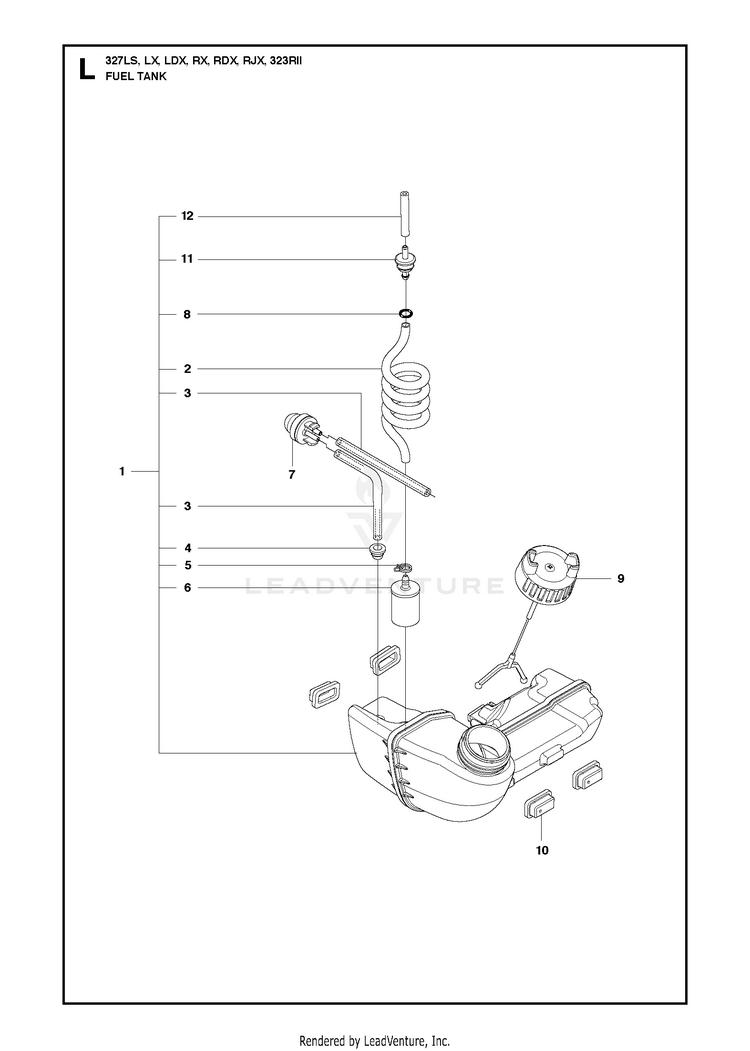

FUEL TANK

...
...
6
KIT FUEL FILTER HUS-591375401
...
11
HOSE NIPPLE ASSY A051 PRO HUS-578295602
...
10
SUPPORT HUS-503911001
...
5
HOSE CLAMP HUS-504022401
...
1
FUEL TANK ASSY HUS-584258001
...
8
O-RING HUS-537184901
...
9
TANK CAP HUS-590324802
...
4
FUEL TANK BUSHING HUS-503735801
...
7
AIR PURGE BUBBLE HUS-503936601
...
3
HOSE.FUEL L=102 HUS-537042401
...
2
FUEL HOSE HUS-581756205
...
12
FUEL TANK ASSY HUS-579534301
Schematic Image Zoomed
