Husqvarna 327 RJX Brushcutter/Clearing Saw

Model: 327 RJX

Back To Assemblies

Save Part Not Listed?
product name

CRANKCASE

...
...
4
CLUTCH COVER HUS-537041209
...
20
SCREW HUS-503200316
...
22
SCREW M5x12 HUS-503201412
...
16
SCREW HUS-503200316
...
7
HOLDER HUS-537073601
...
19
SCREW HUS-503216618
...
15
SCREW HUS-503200316
...
23
SCREW HUS-503200316
...
9
RETAINING RING HUS-537336701
...
6
SCREW M5x16 HUS-503200316
...
12
GASKET HUS-537066901
...
18
SCREW HUS-503200316
...
13
GASKET HUS-537088501
...
2
SCREW HUS-503216825
...
11
SCREW HUS-503200316
...
3
SCREW HUS-503216825
...
1
COMPRESION SLEEVE/ISOLATOR SET HUS-537309601
...
5
PROTECTION PLATE HUS-537425001
...
14
CRANKCASE HUS-537066801
...
21
SCREW HUS-503217716
...
17
SCREW HUS-503216618
...
10
CRANKCASE HUS-537085203
...
8
BEARING HUS-503250501

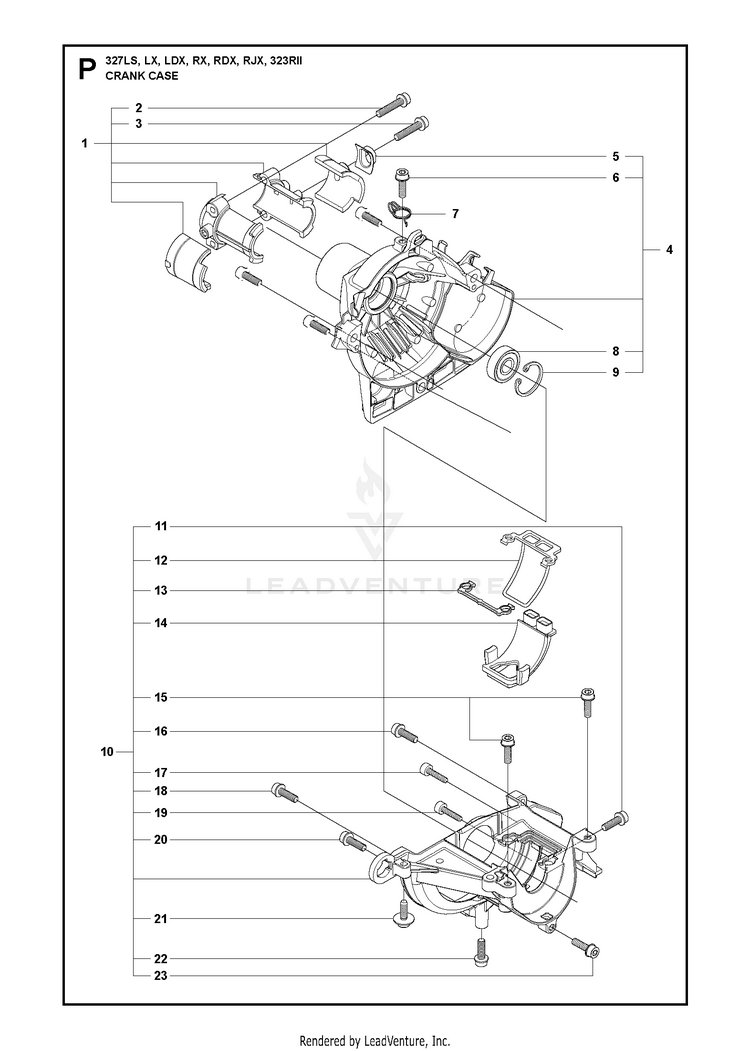

Schematic Image Zoomed
