Husqvarna 327 Lx (20120100001-Current) Trimmer/Edger

Model: 327 Lx (20120100001-Current)

Back To Assemblies

Save Part Not Listed?
product name

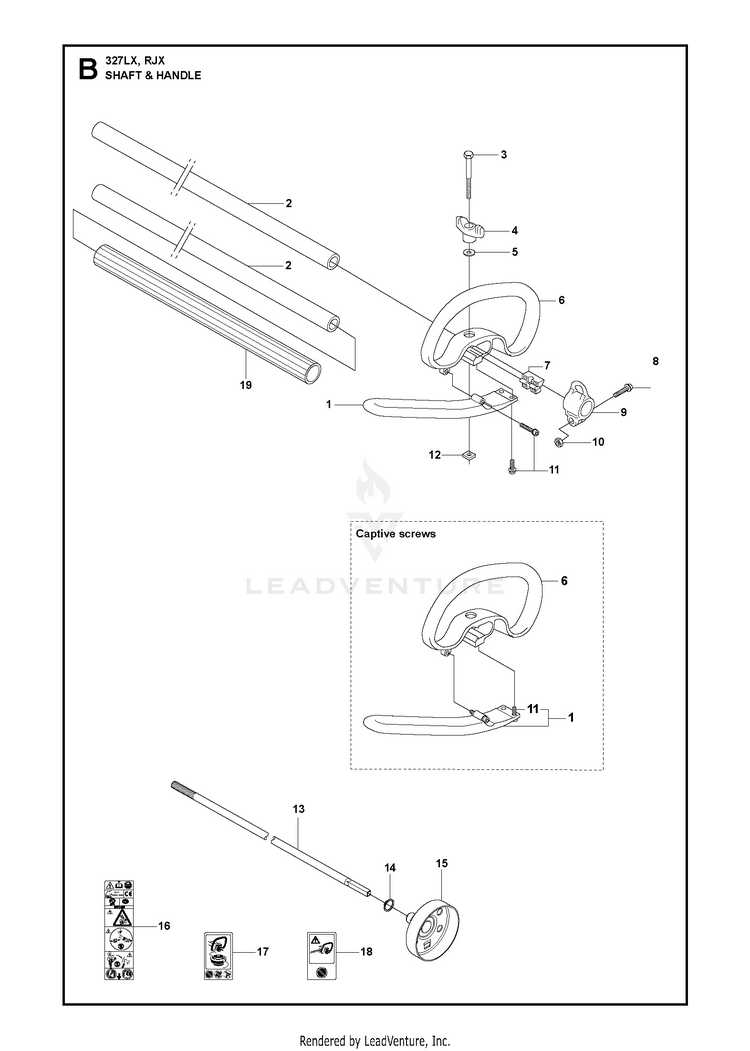

SHAFT & HANDLE

...
...
1
HANDLE RJx HUS-503997804
...
3
SCREW M6X50 Lx, RJxM6X50 HUS-725238051
...
6
HANDLE HUS-503871908
...
7
SPACER PLASTIC HUS-503940301
...
11
SCREW RJx HUS-503216816
...
10
NUT RJx HUS-731231401
...
12
NUT HUS-502197101
...
2
TUBE DRIVESHAFT ASSY RJx L=1483mm Ø=24mm France HUS-540053801
...
8
SCREW RJx HUS-525755101
...
3
SCREW L, LS. M6X40 HUS-725237851
...
15
CLUTCH DRUM HUS-537237501
...
19
GRIP France HUS-537085501
...
2
DRIVE TUBE ASSEMBLY L=1483mm Ø=24mm HUS-503888801
...
16
LABEL WARNING TRIMMERS AND BRU HUS-589295101
...
14
RETAINING RING SGA 10 HUS-735311200
...
17
DECAL WARNING "NO BLADES" HUS-503795601
...
5
WASHER L, LS HUS-503230061
...
13
DRIVE SHAFT L=1525mm Ø=7mm HUS-537234801
...
18
DECAL RJx HUS-537101001
...
6
HANDLE Captive screws HUS-503871908
...
4
KNOB Lx HUS-503879001
...
11
SCREW IHSCFTO Captive screws HUS-574181501
...
1
HANDLE Captive screws HUS-503997804
...
9
HARNESS HOLDER RJx HUS-503941001
