Husqvarna 327 Lx (20120100001-Current) Trimmer/Edger

Model: 327 Lx (20120100001-Current)

Back To Assemblies

Save Part Not Listed?
product name

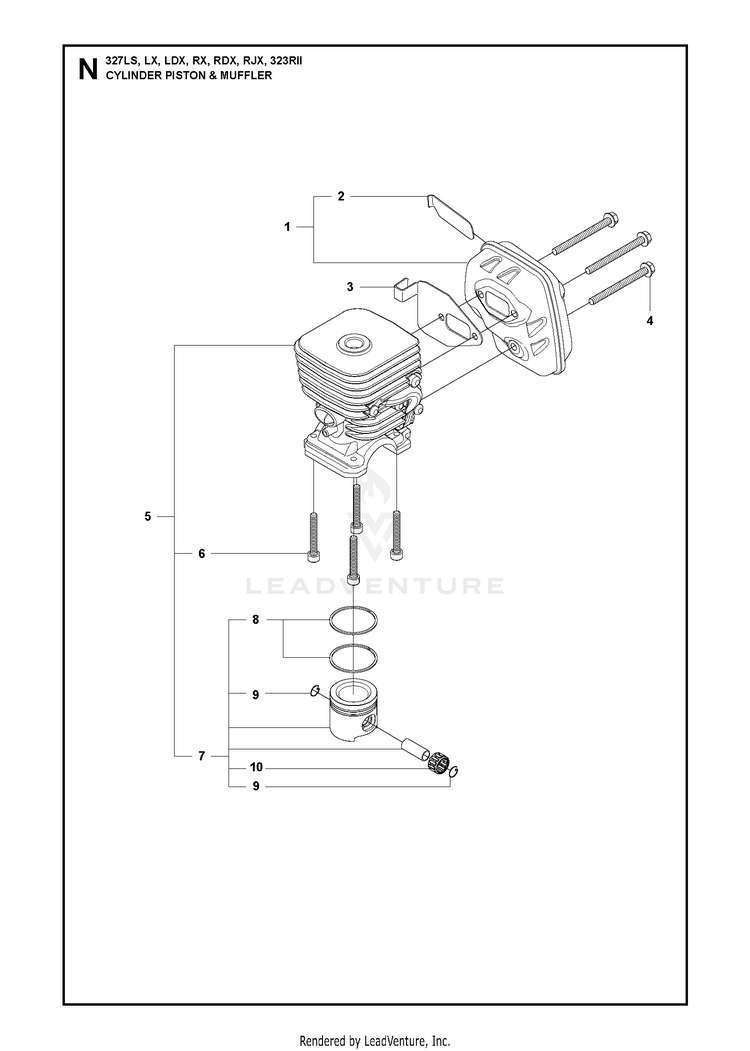

CYLINDER, PISTON & MUFFLER

...
...
2
SPARK ARRESTOR SCREEN HUS-537221801
...
8
PISTON RING HUS-537406201
...
3
GASKET HUS-537014101
...
7
PISTON HUS-537405902
...
1
MUFFLER KIT Cat. HUS-504037801
...
5
CYLINDER COMPL Ø=34mm HUS-537085103
...
9
CLIP RING HUS-737440800
...
10
BEARING HUS-503712201
...
6
SCREW IHSCFM HUS-503200782
...
4
BOLT HUS-502078101
Schematic Image Zoomed
