Husqvarna 327 HE4 X-SERIES Hedge Trimmer

Model: 327 HE4 X-SERIES

Back To Assemblies

Save Part Not Listed?
product name

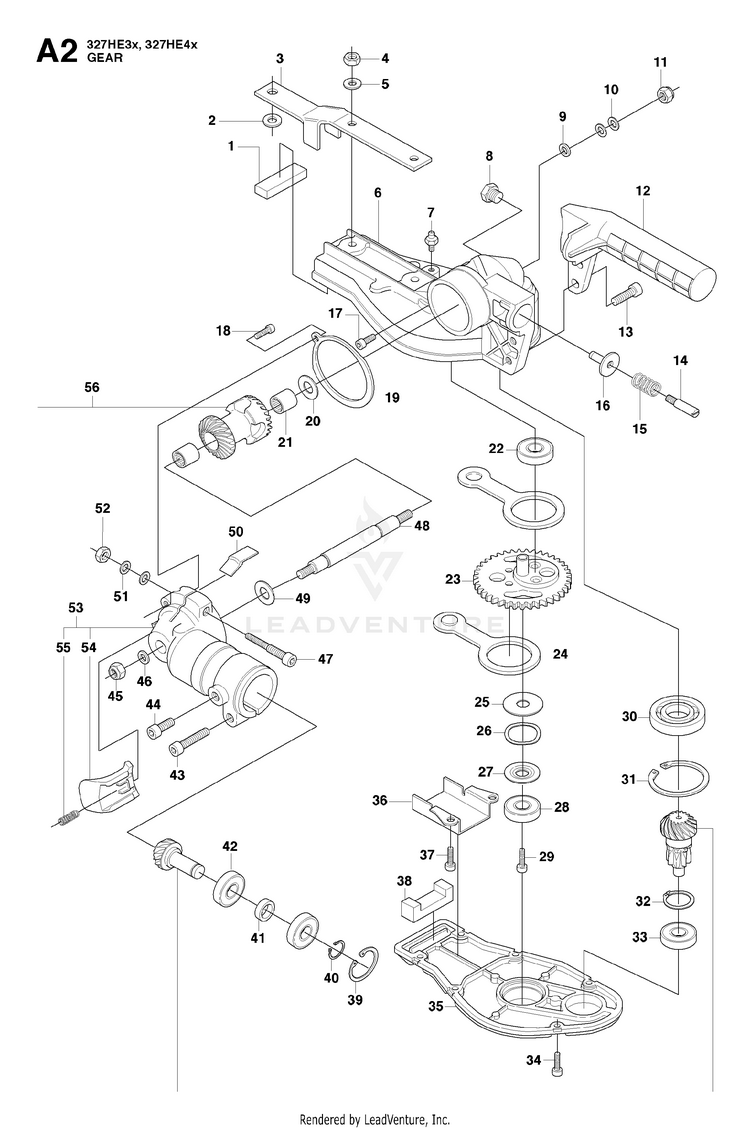

BEVEL GEAR

...
...
16
COVER HUS-537341401
...
18
SCREW MC6S 5X12 HUS-725532755
...
21
SUPPORT BUSHING HUS-537233601
...
56
GEAR KIT HUS-544064001
...
20
WASHER HUS-537294201
...
38
GASKET HUS-575746301
...
19
PLATE HUS-537233401
...
39
RETAINING RING HUS-735312510
...
53
GEAR HOUSING HUS-544231001
...
55
SPRING HUS-537405701
...
35
COVER HUS-537231801
...
29
SCREW MC6S 5X10 HUS-725532555
...
13
SCREW MC6S 6X16 HUS-725536855
...
12
HANDLE HUS-537233001
...
42
BALL BEARING HUS-738219904
...
37
SCREW MC6S 4X8 HUS-725528755
...
32
RETAINING RING HUS-735311900
...
11
NUT FLANGE - M6 HUS-732251601
...
54
KNOB HUS-537394801
...
15
SPRING HUS-537233301
...
6
GEAR HOUSING HUS-537231701
...
41
SPACER HUS-537233701
...
48
SHAFT HUS-537232601
...
4
NUT HUS-503221012
...
36
PLATE HUS-537341501
...
22
BALL BEARING HUS-738219804
...
49
WASHER HUS-537294201
...
34
SCREW HUS-725529101
...
31
RETAINING RING SGH 35 HUS-735313310
...
17
SCREW MC6S 5X10 HUS-725532555
...
26
WASHER HUS-503230302
...
33
BALL BEARING HUS-738219804
...
14
PIN HUS-537385901
...
10
WASHER HUS-737385200
...
27
WASHER HUS-537341801
...
28
BALL BEARING HUS-738219804
...
51
SPRING HUS-737385000
...
46
WASHER - M6 HUS-734115201
...
25
WASHER HUS-537404801
...
3
BRACKET HUS-537232101
...
2
WASHER - 25X8.5X2.3 HUS-734116541
...
24
CONNECTING ROD HUS-537232001
...
45
NUT FLANGE - M6 HUS-732251601
...
52
HEXAGON NUT FLANGE M4 A2-70 HUS-588222101
...
7
GREASE NIPPLE HUS-738881001
...
8
PLUG * HUS-537416601
...
5
Washer 7/32 x 1/2 x 16 Gauge HUS-819070816
...
30
BALL BEARING HUS-537406402
...
43
SCREW HUS-503200725
...
50
SEALING HUS-537394901
...
47
SCREW HUS-537295501
...
1
GASKET HUS-575746301
...
9
WASHER - M6 HUS-734115201
...
40
RETAINING RING HUS-735311100
...
44
SCREW HUS-503201412
...
23
GEAR HUS-537232801
