Husqvarna 327 HE4 X-SERIES Hedge Trimmer

Model: 327 HE4 X-SERIES

Back To Assemblies

Save Part Not Listed?
product name

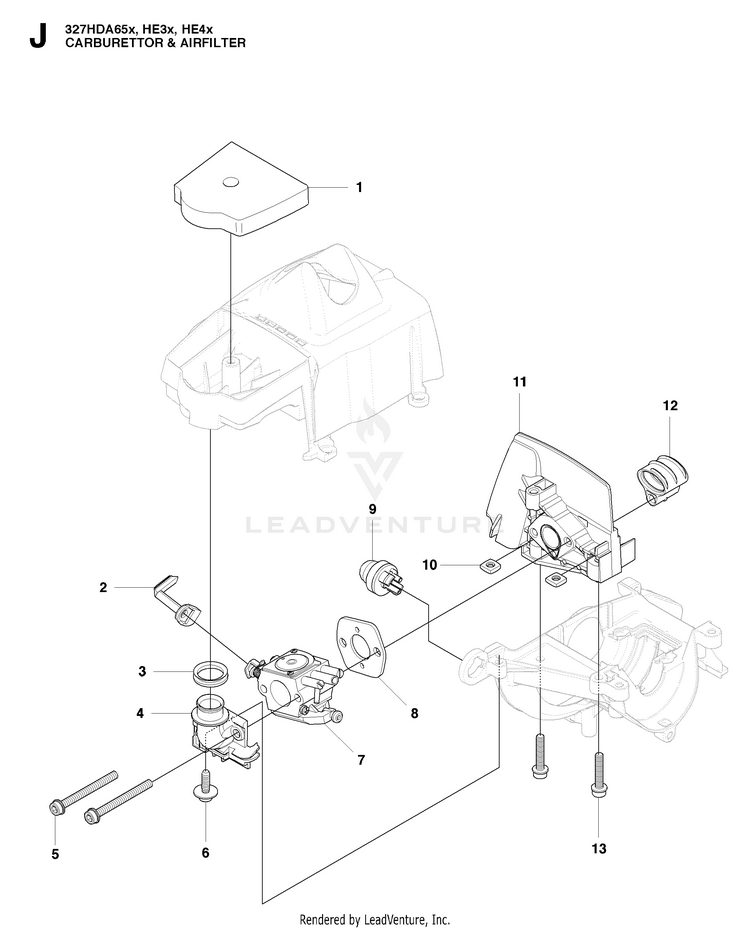

CARBURETOR & AIR FILTER

...
...
12
PIPE HUS-503942601
...
8
GASKET HUS-503497101
...
1
AIR FILTER HUS-537143101
...
2
CHOKE CONTROL HUS-503962501
...
9
AIR PURGE BUBBLE HUS-503936601
...
11
PARTITION HUS-503910901
...
10
NUT HUS-503226504
...
4
BRACKET HUS-502499001
...
13
SCREW HUS-503200325
...
5
SCREW HUS-503217550
...
7
CARBURETOR HUS-503283113
...
6
SCREW HUS-503217716
...
3
SEALING HUS-740681121
