Husqvarna 327 HE4 X-SERIES Hedge Trimmer

Model: 327 HE4 X-SERIES

Back To Assemblies

Save Part Not Listed?
product name

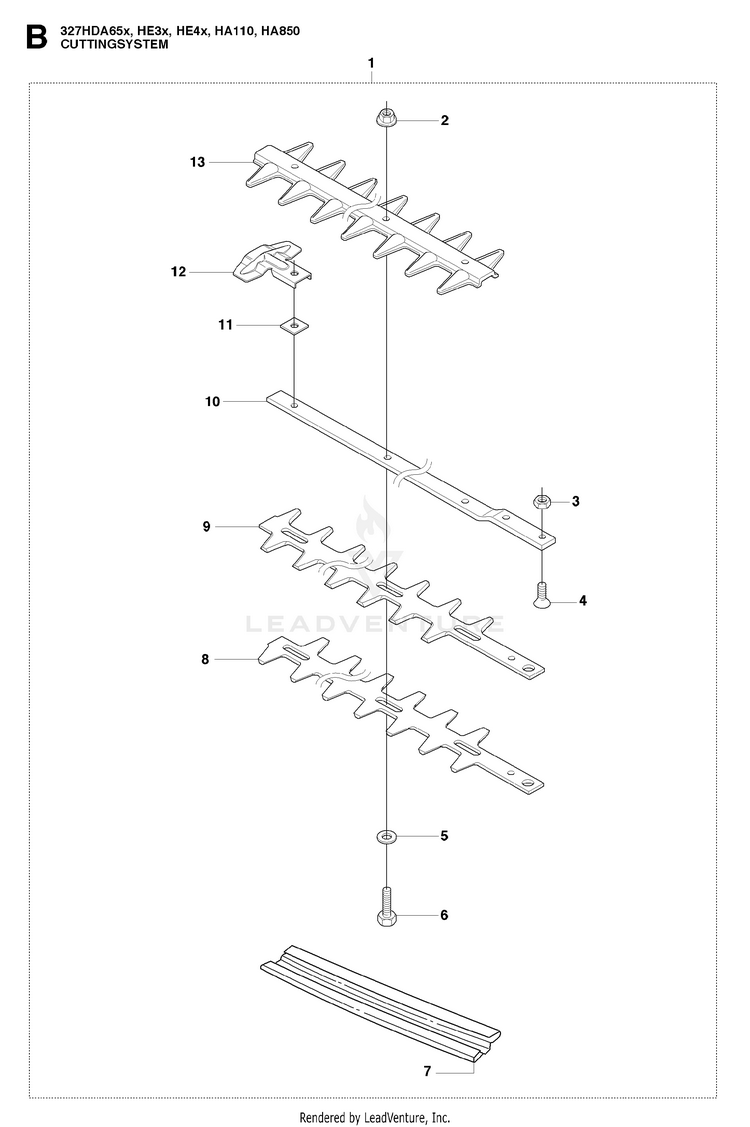

CUTTING EQUIPMENT 2

...
...
1A
CUTTING DECK HDA 55 HUS-505065503
...
11
WASHER STEEL HUS-544462701
...
5A
WASHER 6,4X18X1,5 HUS-503230024
...
2A
NUT HUS-503220006
...
3
NUT HUS-503221012
...
4
SCREW HUS-725633155
...
12
PROTECTOR HUS-537372001
...
9A
BLADE HUS-505064801
...
13
PLATE HUS-537284401
...
6A
SCREW INTERNAL TORX SOCKET HEA HUS-589308902
...
8A
BLADE HUS-505064801
...
7
Transport Guard HUS-581259304
...
10A
BALK HUS-537283901
