Husqvarna 327 HE4 X-SERIES Hedge Trimmer

Model: 327 HE4 X-SERIES

Back To Assemblies

Save Part Not Listed?
product name

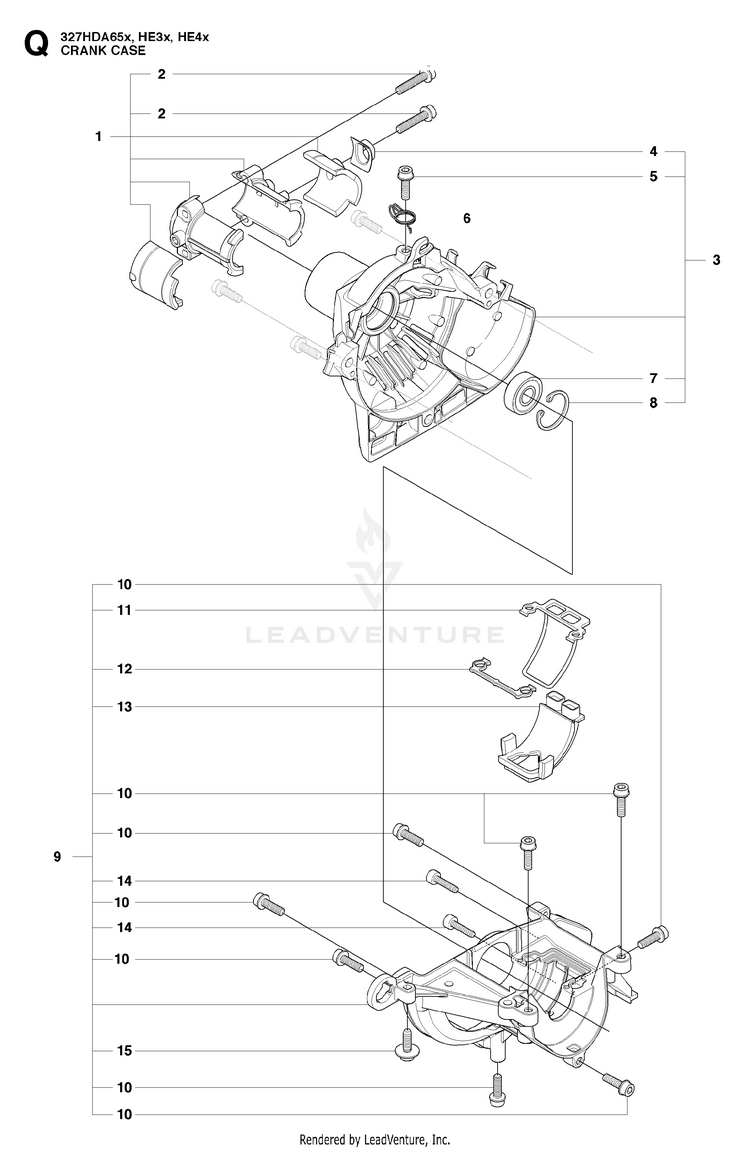

CRANKCASE

...
...
2
SCREW HUS-503216825
...
13
CRANKCASE HUS-537066801
...
8
RETAINING RING HUS-537336701
...
12
GASKET HUS-537088501
...
5
SCREW IHSCFM M5X16 HUS-503200303
...
1
COMPRESION SLEEVE/ISOLATOR SET HUS-537309601
...
10
SCREW IHSCFM M5X16 HUS-503200303
...
4
PROTECTION PLATE HUS-537425001
...
9
CRANKCASE HUS-537085203
...
6
HOLDER HUS-537073601
...
15
SCREW HUS-503217716
...
14
SCREW HUS-503216618
...
11
GASKET HUS-537066901
...
3
CLUTCH COVER HUS-537041209
...
7
BEARING HUS-503250501
