Husqvarna 327 ES (2010-05) Trimmer

Model: 327 ES (2010-05)

Back To Assemblies

Save Part Not Listed?
product name

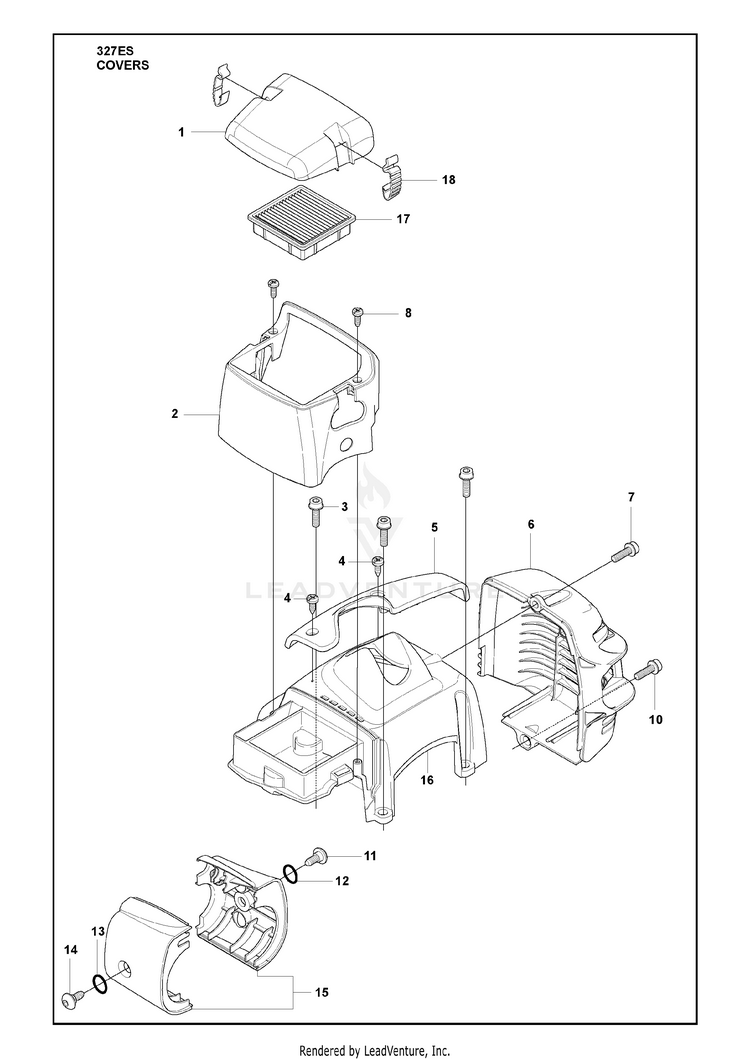

Covers

...
...
1
FILTER COVER HUS-505142001
...
2
COVER HUS-505142201
...
3
SCREW M5x16 HUS-503200316
...
4
SCREW HUS-503213512
...
5
ARM PROTECTION HUS-502481601
...
6
HEAT PROTECTOR HUS-544848102
...
7
SCREW W/ LOCKING FLUID HUS-503216220
...
8
SCREW HUS-503212910
...
10
SCREW HUS-503200316
...
11
SCREW MT5X11 HUS-503961301
...
12
O-RING 8X1.6 HUS-740420600
...
13
O-RING 8X1.6 HUS-740420600
...
14
SCREW MT5X11 HUS-503961301
...
15
COVER HUS-502481501
...
16
CYLINDER COVER ASSY HUS-505141802
...
17
FILTER HUS-505271001
...
18
BUCKLE HUS-537387201
