Husqvarna 326 RJX (2004-03) Trimmer/Clearing Saw

Model: 326 RJX (2004-03)

Back To Assemblies

Save Part Not Listed?
product name

Shaft / Tube

...
...
502197101
NUT HUS-502197101
...
503200716
SCREW HUS-525755101
...
503216816
SCREW HUS-503216816
...
503230061
WASHER HUS-503230061
...
503795601
DECAL WARNING "NO BLADES" HUS-503795601
...
503864501
DRIVE SHAFT HUS-503864501
...
503871901
HANDLE HUS-503871906
...
503871903
HANDLE HUS-503871908
...
503872601
CLUTCH DRUM HUS-503872601
...
503879001
KNOB HUS-503879001
...
503888801
DRIVE TUBE ASSEMBLY HUS-503888801
...
503940301
SPACER PLASTIC HUS-503940301
...
503941001
HARNESS HOLDER HUS-503941001
...
503997801
HANDLE HUS-503997804
...
537101001
DECAL HUS-537101001
...
537294801
LABEL WARNING TRIMMERS AND BRU HUS-589295101
...
725237851
SCREW HUS-725237851
...
725238051
SCREW M6X50 HUS-725238051
...
731231401
NUT HUS-731231401

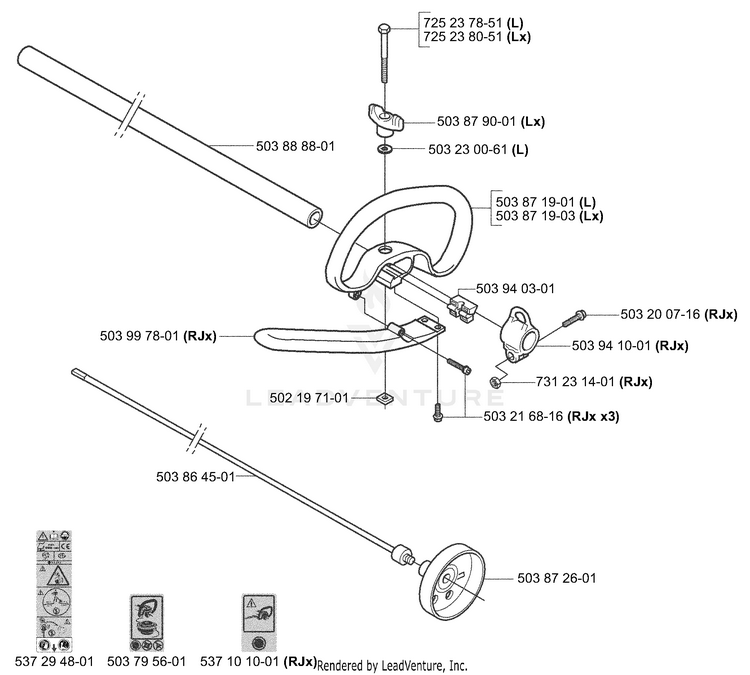

Schematic Image Zoomed
