Husqvarna 326 ES Trimmer/Edger

Model: 326 ES

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

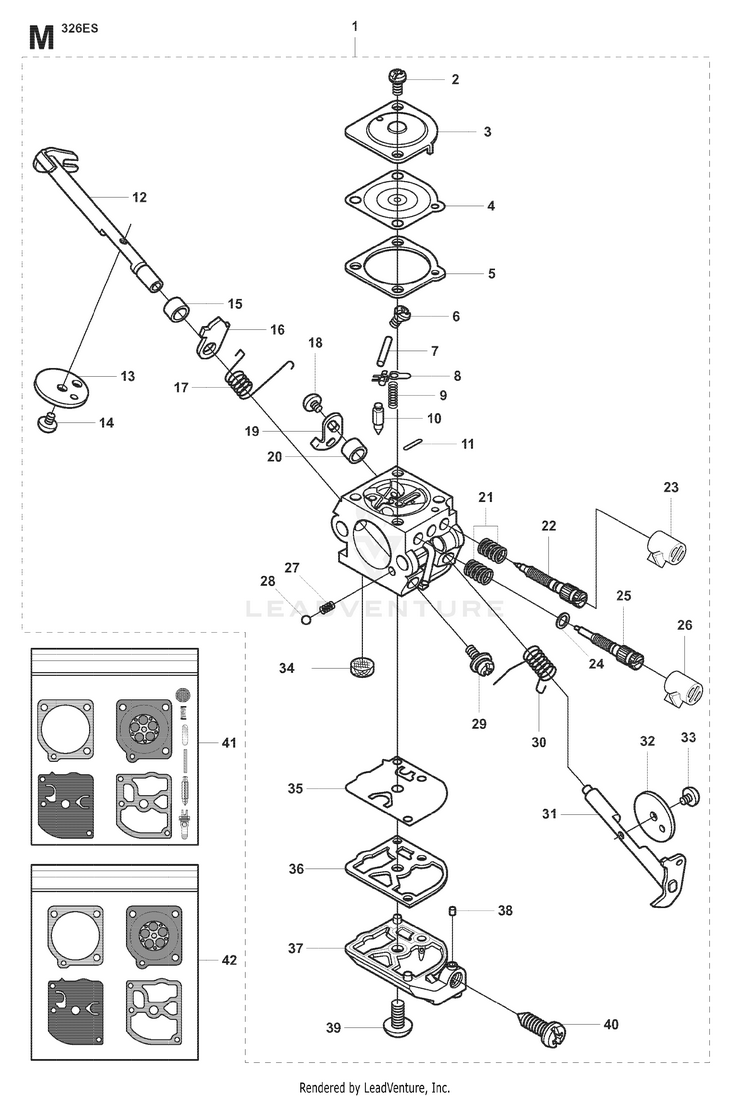

CARBURETOR DETAILS

...
...
1
KIT CARB HUS-588171156
...
41
GASKET KIT (ZAMA GND39) HUS-531004552
...
40
SCREW HUS-537020701
...
12
CHOKE CAP HUS-537370301
...
6
SCREW HUS-503480101
...
33
SCREW HUS-503479201
...
27
SPRING HUS-537012601
...
21
SPRING HUS-503994301
...
17
SCREW HUS-503479001
...
42
CARBURETOR KIT (ZAMA RB69) HUS-531004553
...
11
PIN HUS-537020801
...
35
PUMP DIAPHRAGM HUS-537020001
...
23
CAP HUS-537021601
...
37
COVER HUS-537020201
...
28
BALL HUS-537012501
...
19
LEVER HUS-537019801
...
20
SPACER HUS-503478901
...
4
DIAPHRAGM HUS-537048901
...
25
CAP HUS-537021601
...
15
BUSHING HUS-503481901
...
7
PIN HUS-537020801
...
31
SHAFT HUS-537019601
...
22
LOW SPEED NEEDLE HUS-537127801
...
39
SCREW HUS-503479601
...
3
COVER HUS-503974301
...
24
WASHER HUS-503974001
...
8
LEVER HUS-503665901
...
14
SCREW HUS-503481801
...
34
STRAINER HUS-503535701
...
29
SCREW * HUS-503755301
...
16
LEVER HUS-537049001
...
36
GASKET HUS-537020101
...
18
SPRING HUS-537021001
...
30
SPRING THROTTLE HUS-537019701
...
2
SCREW HUS-503480501
...
32
THROTTLE FLAP HUS-537019901
...
38
PLUG HUS-503481101
...
9
SPRING HUS-537273401
...
13
CHOKE CAP HUS-537370301
...
5
GASKET HUS-537020401
...
10
INLET NEEDLE HUS-503479701
...
26
NEEDLE HIGH SPEED HUS-537020601
