Husqvarna 326 ES (2008-04) Edger

Model: 326 ES (2008-04)

Back To Assemblies

Save Part Not Listed?
product name

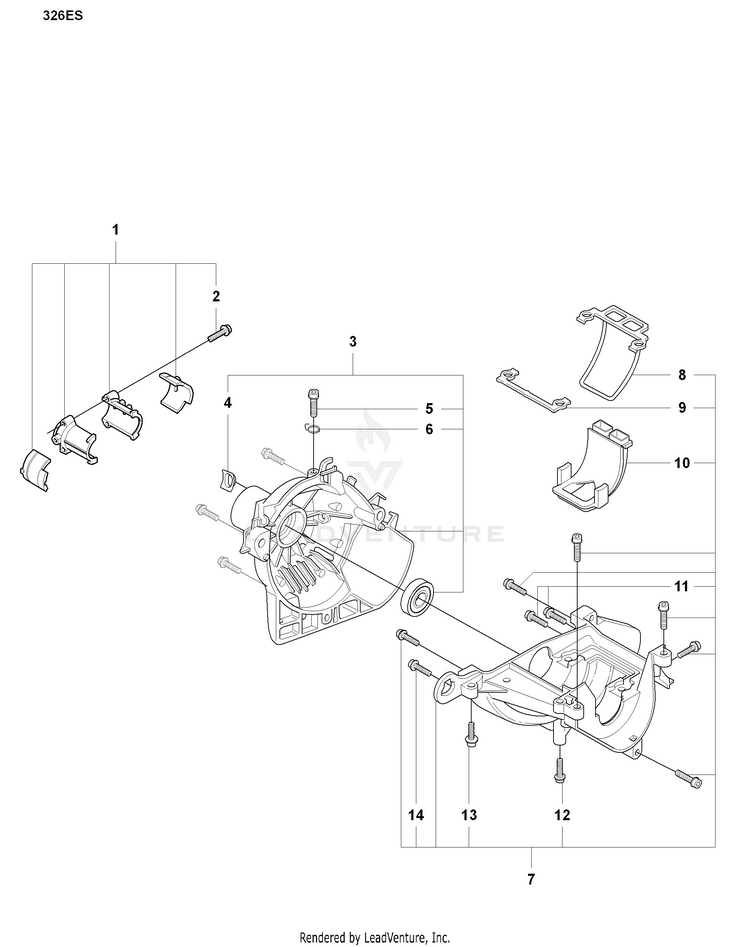

Clutch Housing / Crankcasse

...
...
1
COMPRESION SLEEVE/ISOLATOR SET HUS-537309601
...
2
SCREW HUS-503216825
...
3
CLUTCH COVER HUS-537041209
...
4
PROTECTION PLATE HUS-537425001
...
5
SCREW HUS-503200316
...
6
HOLDER HUS-537073601
...
7
CRANKCASE HUS-537085203
...
8
GASKET HUS-537066901
...
9
GASKET HUS-537088501
...
10
CRANKCASE HUS-537066801
...
11
SCREW HUS-503216618
...
12
SCREW HUS-503201412
...
13
SCREW HUS-503217716
...
14
SCREW HUS-503200316
