Husqvarna 326 ES (2008-04) Edger

Model: 326 ES (2008-04)

Back To Assemblies

Save Part Not Listed?
product name

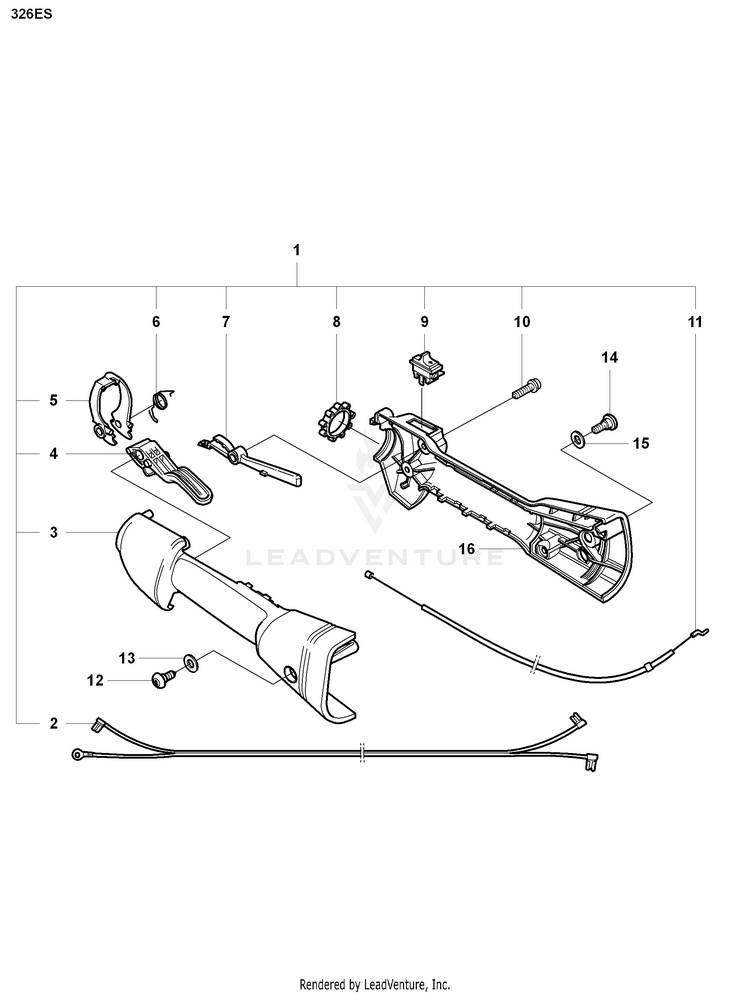

Throttle Control

...
...
1
HANDLE HUS-503852902
...
2
SHORT-CIRCUIT CABLE HUS-537414201
...
3
HANDLE HALF HSG LH (L) HUS-503995601
...
3
HANDLE (Lx, LDx) HUS-503995602
...
4
THROTTLE TRIGGER HUS-503877903
...
5
LEVER HUS-503918101
...
6
SPRING HUS-537011301
...
7
THROTTLE LOCK HUS-503878001
...
8
VIBRATION DAMPER (L, Lx, LS, LDx) HUS-503961401
...
9
STOP BUTTON HUS-537419001
...
10
SCREW HUS-503216618
...
11
THROTTLE CABLE HUS-544171701
...
12
SCREW MT5X11 HUS-503961301
...
13
O-RING 8X1.6 HUS-740420600
...
14
SCREW MT5X11 HUS-503961301
...
15
O-RING 8X1.6 HUS-740420600
...
16
HSG THROTTLE RH (L) HUS-503995501
...
16
HANDLE (Lx, LDx) HUS-503995502
