Husqvarna 326 ES (2008-04) Edger

Model: 326 ES (2008-04)

Back To Assemblies

Save Part Not Listed?
product name

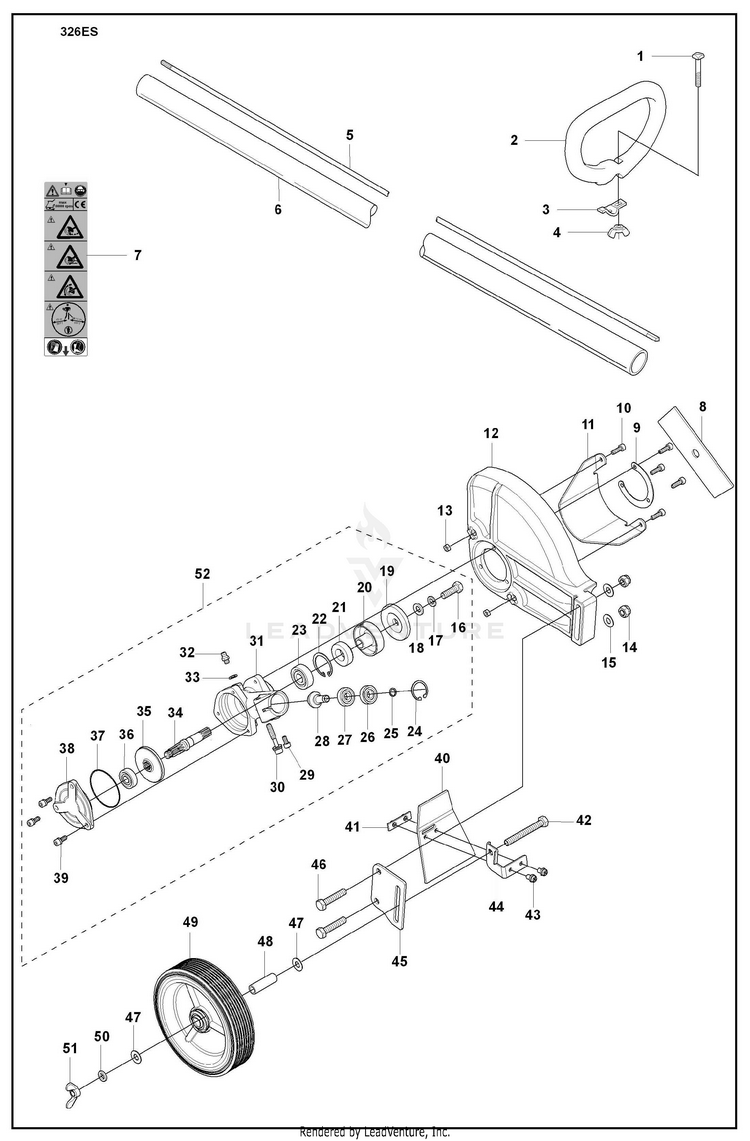

Gearbox / Handle / Drive Shaft

...
...
1
SCREW HUS-503219835
...
2
HANDLE, LOOP HUS-537076801
...
3
CLAMP HUS-530038599
...
4
WING NUT HUS-503222601
...
5
DRIVE SHAFT HUS-537234801
...
6
DRIVE TUBE ASSEMBLY HUS-503888801
...
7
DECAL, SAFETY HUS-503847801
...
8
EDGER BLADE (IN CLAM) HUS-531300233
...
9
PLATE HUS-505171901
...
10
BOLT M5 X L16 ALLEN HUS-505171801
...
11
PROTECTIVE PLATE HUS-505172003
...
12
Guards HUS-505171702
...
13
NUT HUS-505172301
...
14
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
15
RP_WASHER HUS-505175001
...
16
BOLT M8 X L25 L/H HUS-505169601
...
17
WASHER HUS-505169701
...
18
WASHER HUS-505169801
...
19
HOLDER (B) HUS-505171401
...
20
HOLDER (A) HUS-505171201
...
21
OIL SEAL HUS-505168701
...
22
RING HUS-505168801
...
23
BEARING HUS-505168601
...
24
RP_RING HUS-505169401
...
25
RING HUS-505169501
...
26
BEARING HUS-505169301
...
27
BEARING HUS-505169201
...
28
PINION HUS-505169101
...
29
BOLT M5 X L10 HUS-505173901
...
30
BOLT M6 X L35 ALLEN HUS-505170001
...
31
GEARCASE HUS-505168401
...
32
FITTING HUS-505171501
...
33
WASHER HUS-505171601
...
34
SHAFT HUS-505168901
...
35
GEAR HUS-505169001
...
36
BEARING HUS-505170201
...
37
O-RING HUS-505168501
...
38
COVER HUS-505170101
...
39
RP_BOLT HUS-574081301
...
40
RUBBER HUS-505173701
...
41
PLATE HUS-505173601
...
42
BOLT M8 X L65 HUS-505172601
...
43
BOLT M5 X L10 HUS-505173901
...
44
BRACKET HUS-505173501
...
45
MAIN BRACKET HUS-505174601
...
46
BOLT M8 X L40 HUS-505174701
...
47
WASHER HUS-505173001
...
48
SLEEVE HUS-505173301
...
49
WHEEL HUS-505172501
...
50
WASHER HUS-505172901
...
51
NUT HUS-527068601
...
52
GEAR CASE ASSY HUS-588163001
