Husqvarna 326 ES (2008-04) Edger

Model: 326 ES (2008-04)

Back To Assemblies

Save Part Not Listed?
product name

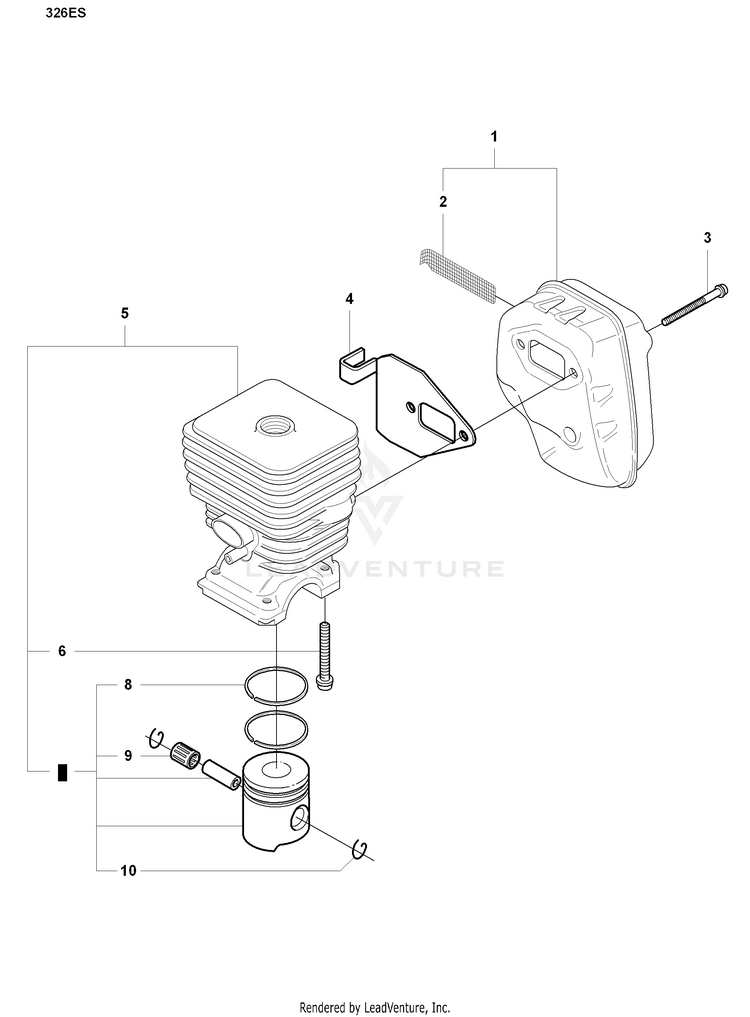

Cylinder / Muffler

...
...
1
MUFFLER Cat. HUS-537221703
...
2
SPARK ARRESTOR SCREEN HUS-537221801
...
3
SCREW HUS-503202956
...
4
GASKET HUS-537014101
...
5
CYLINDER COMPL Ø=34mm HUS-537085103
...
6
SCREW IHSCFM HUS-503200782
...
7
PISTON HUS-537405902
...
8
PISTON RING HUS-537406201
...
9
BEARING HUS-503712201
...
10
CLIP RING HUS-737440800
